Environmental Controls

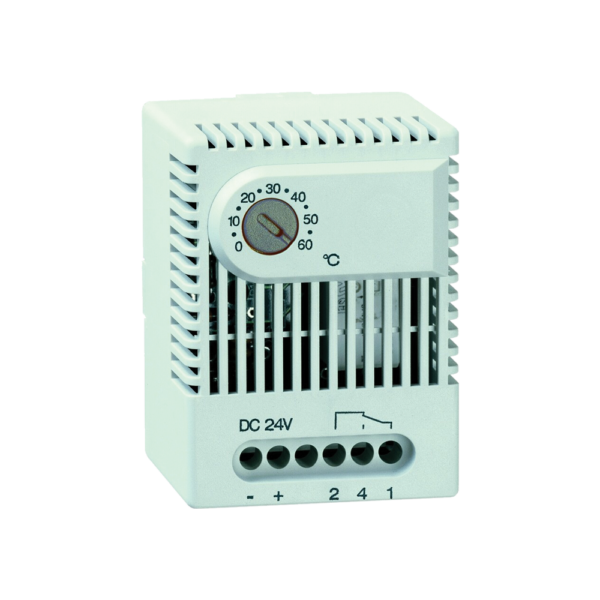

Thermostat électronique (24V DC)

01190.0-00

CA$159.85

In Stock

Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

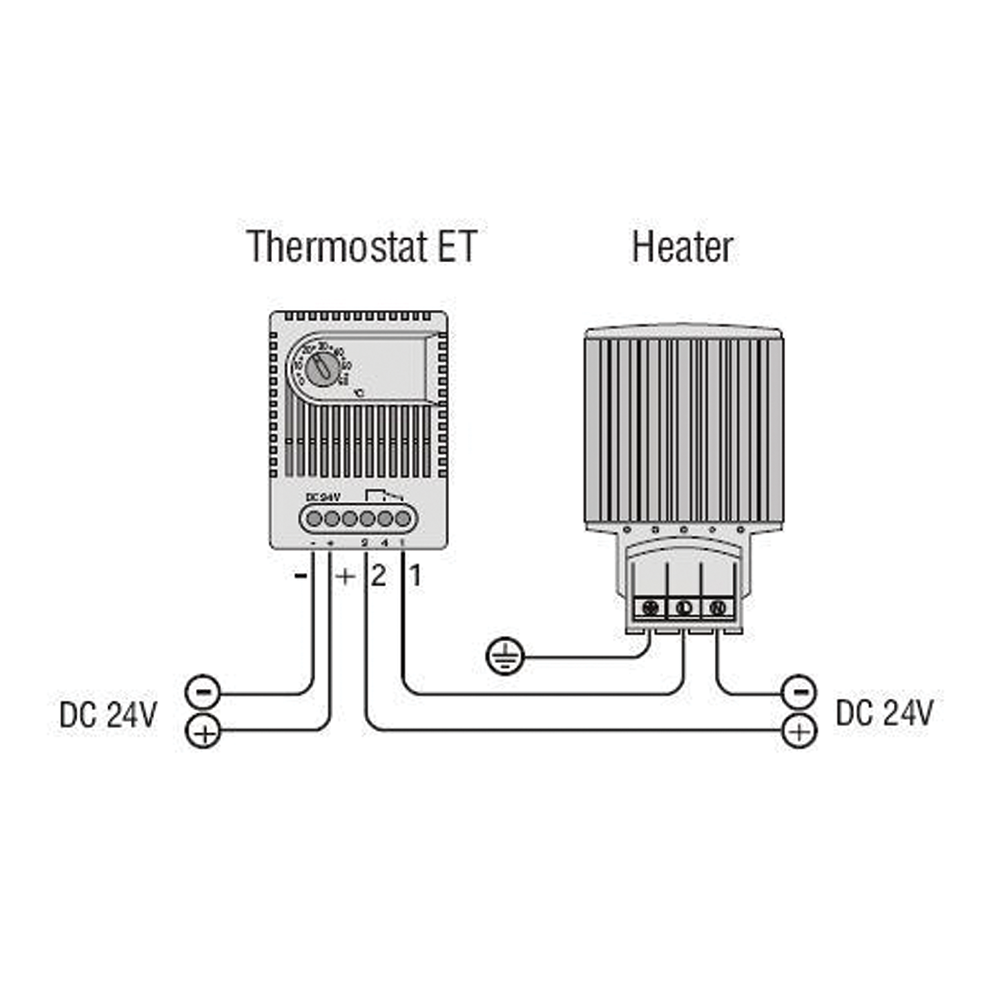

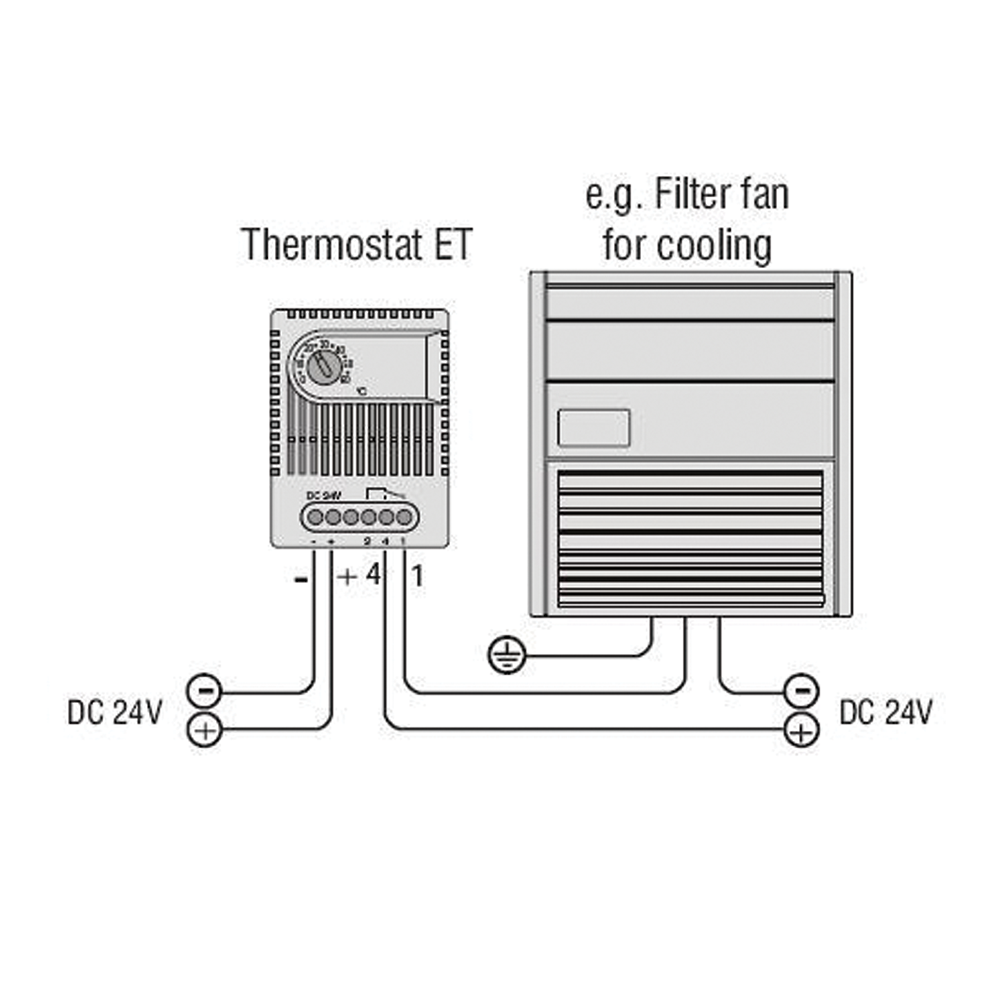

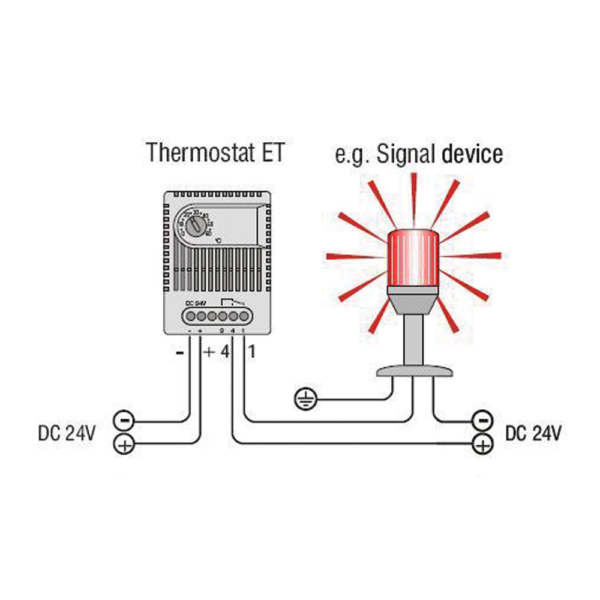

The ET 011 is an electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (changeover)
contact. A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical thermostats.

  • Switching difference approx. 5.4 °F (3 K)
  • Sensor element PTC

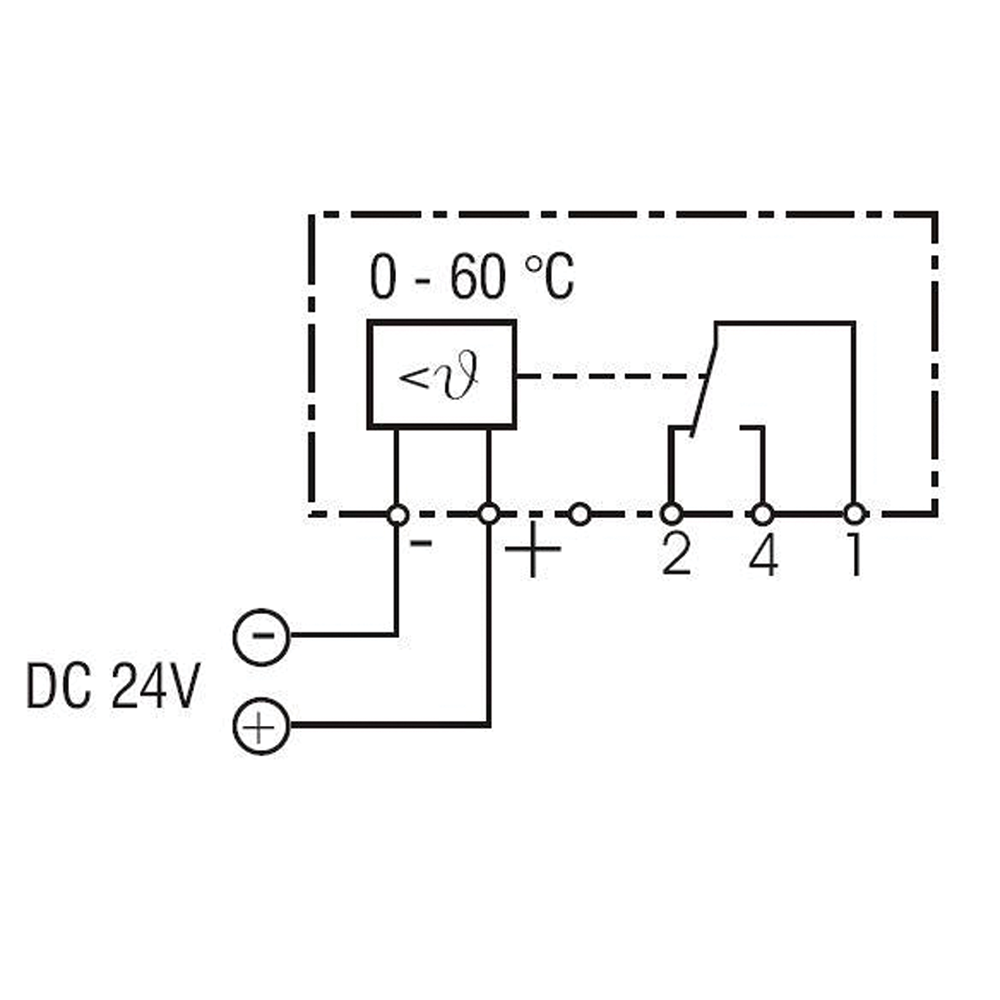

  • Contact type SPDT / change-over contact
  • Contact resistance < 10mÙ Service life > 100,000 cycles
  • Max. switching capacity 16A @ 28VDC
  • Connection 5-pole terminal, clamping torque 0.5Nm max. Solid wire – AWG 14 max. (2.5mm²) stranded wire (with wire end ferrule) – AWG 16 max. (1.5mm²)
  • Housing plastic, UL 94V-0, light grey
  • Mounting clip for 35mm DIN rail, EN 60715
  • Mounting position vertical
  • Operating/Storage temperature +32 to +140°F (0 to +60°C)
  • Operating/Storage humidity -49 to +176°F (-45 to +80°C)

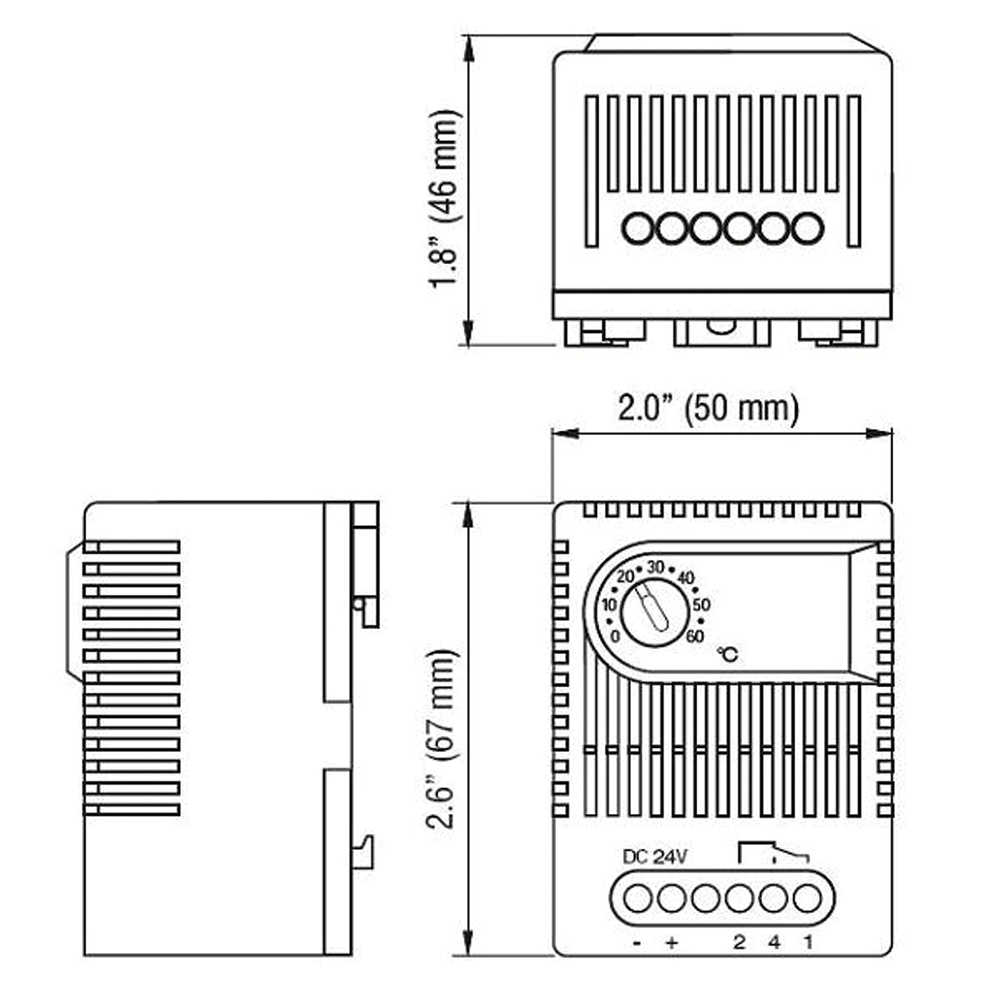

  • Dimensions 2.6 x 2.0 x 1.8” (67 x 50 x 46mm)
  • Weight approx. 2.4 oz. (70 g)
  • Protection type IP20
  • Approvals EAC
