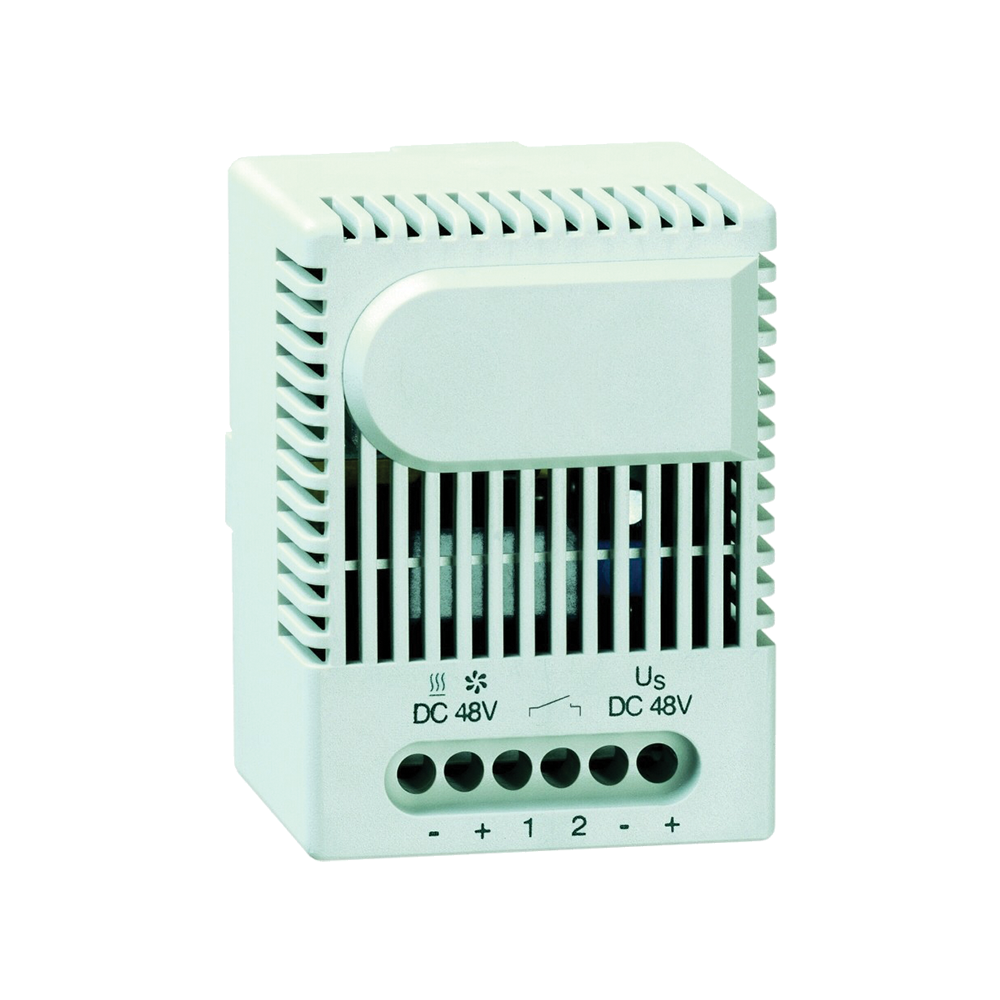

Relais électronique

01000.0-xx

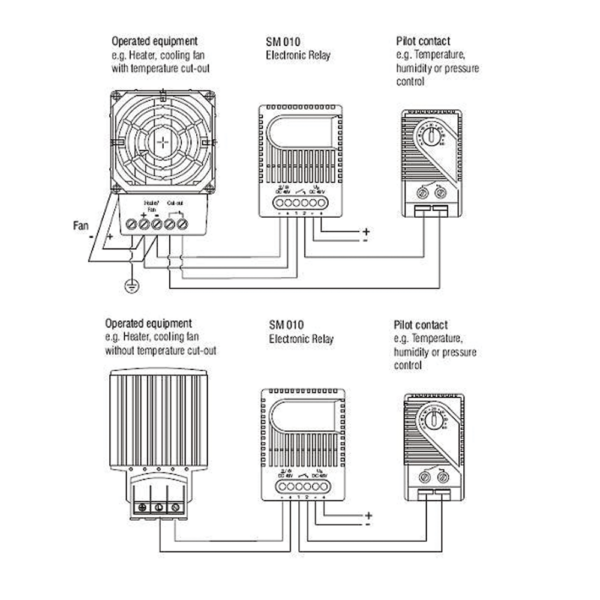

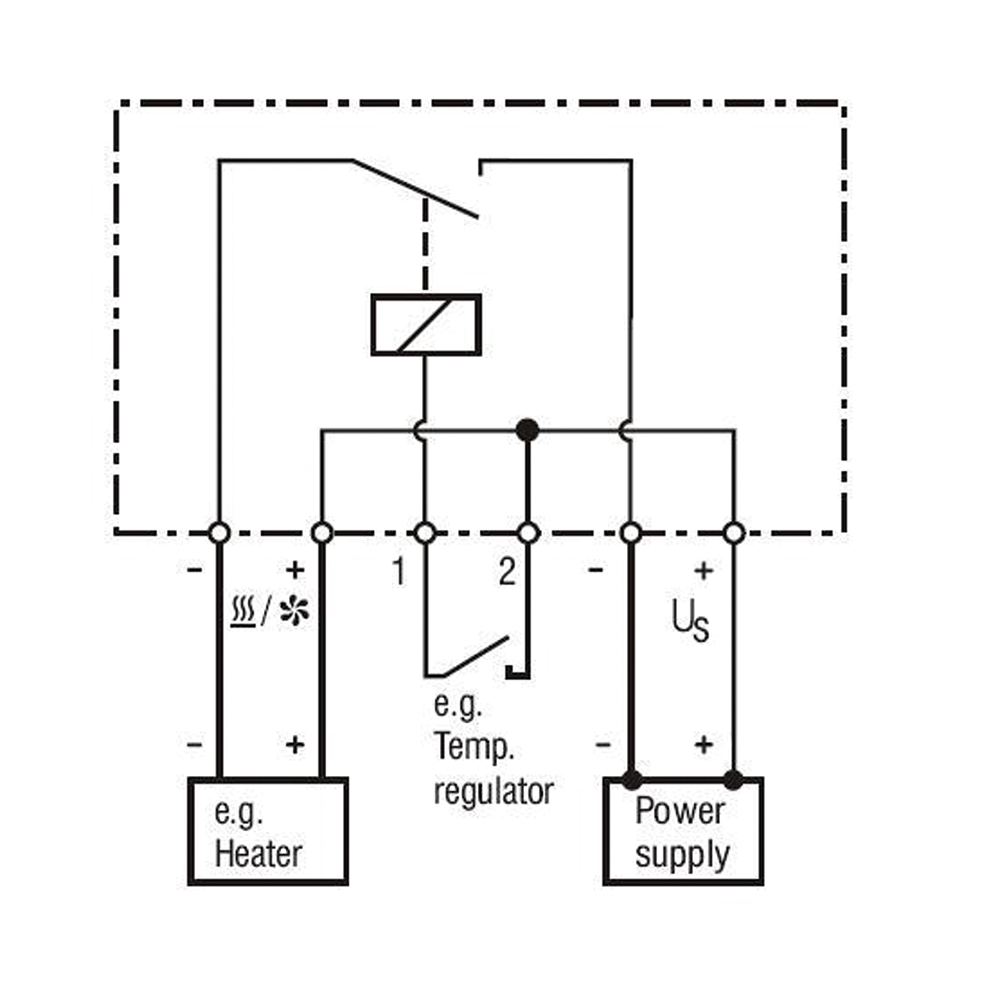

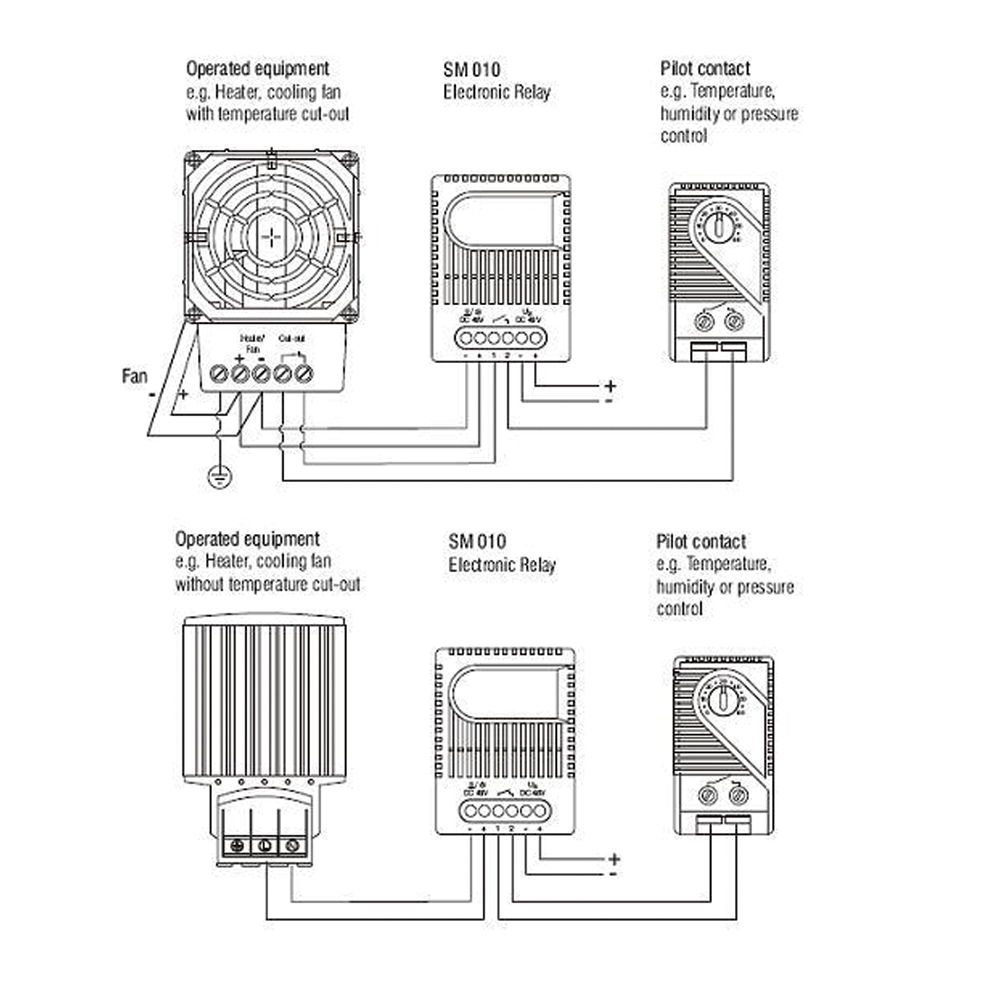

The SM 010 Electronic Relay is used for switching high powered DC operated equipment, such as heaters, up to 16 amps. A separate conventional switch contact is used as controller (e.g. thermostat, hygrostat). The electronic relay is available in DC 24 V and DC 48 V versions.

  • Type de contact NO – normally open (Relay/MOSFET)
  • Contact resistance < 10m.
  • Durée de vie > 100 000 cycles
  • EMC acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
  • Connexion 6-pole terminal, clamping torque 0.5Nm max. Solid wire – AWG 14 max. (2.5mmÇ), stranded wire* – AWG 16 max. (1.5 mmÇ)
  • Housing plastique, UL 94V-0, gris clair
  • Montage clip pour rail DIN 35 mm, EN 60715
  • Mounting position vertical
  • Operating / Storage temperature -49 to 158ÆF (-45 to 70ÆC)
  • Operating / Storage humidity max. 90 %RH (non-condensing)

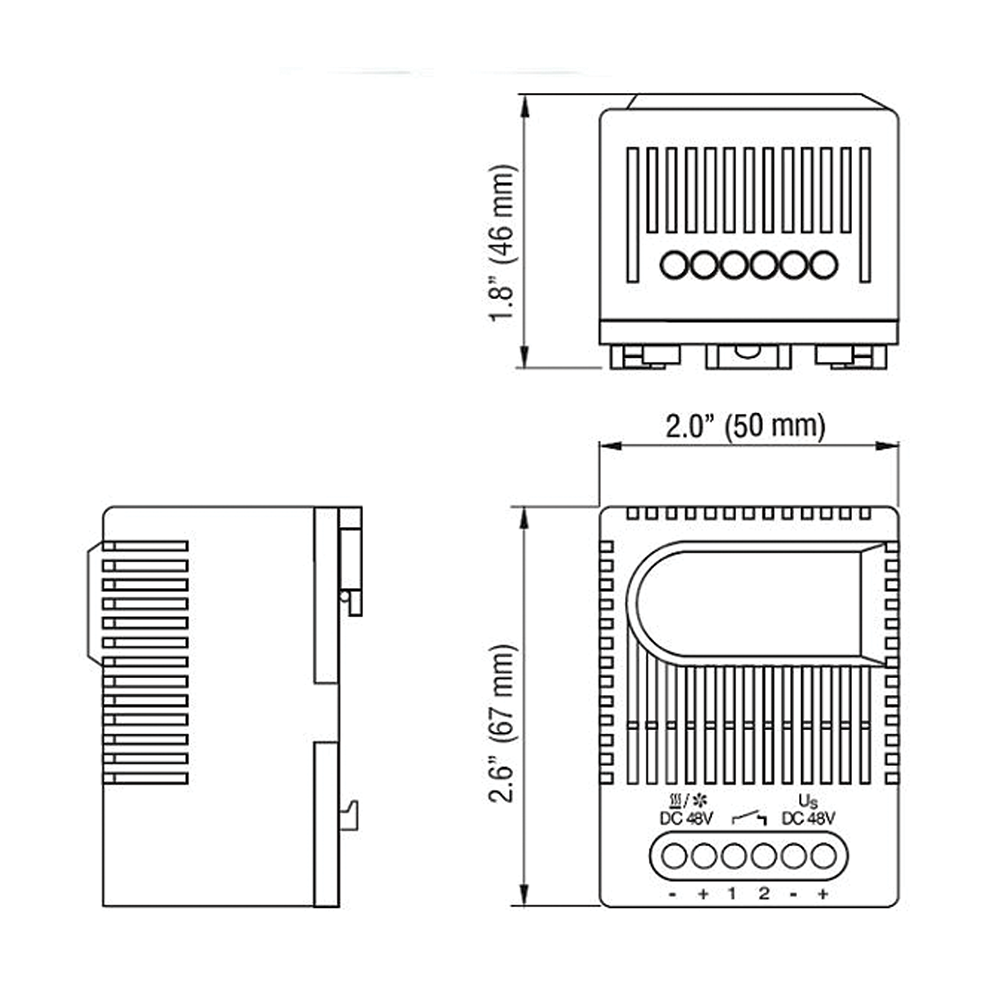

  • Dimensions 2.6 x 2.0 x 1.8” (67 x 50 x 46mm)
  • Poids approx. 3.0 oz. (85g)
  • Type de protection IP20
  • Autorisations UL File No. E342261, EAC
