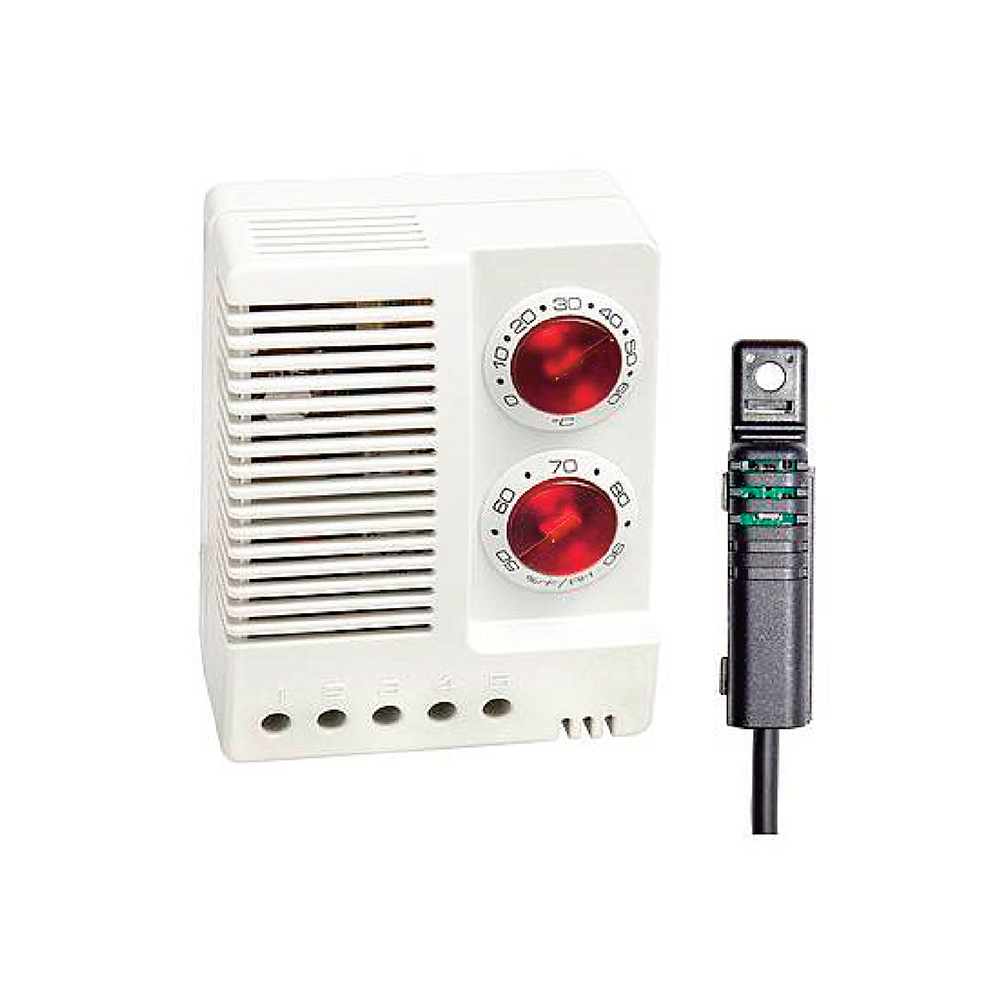

Electronic Hygrotherm with External Sensor

Environmental Controls

Hygromètre électronique avec capteur externe

EHS012

Hygrotherm

Voltage

Setting range

Save

Remove From Saved List

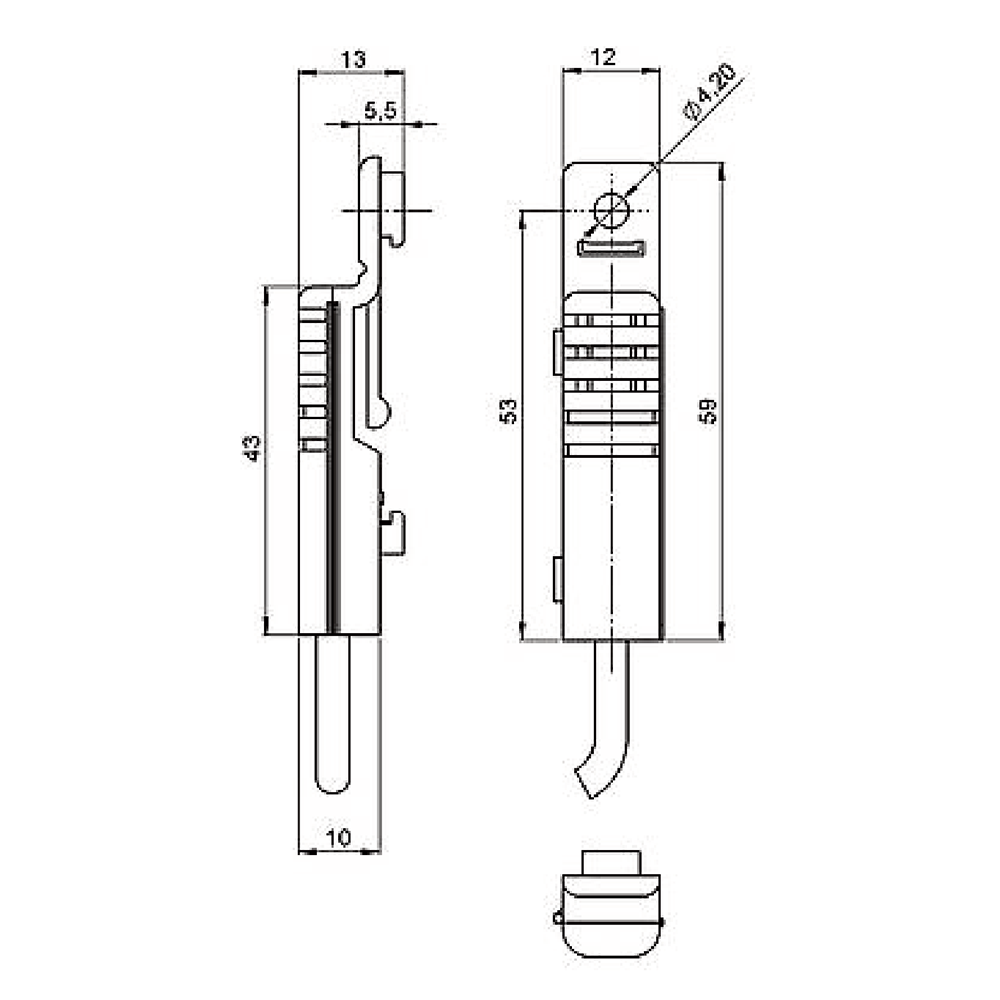

The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components and turns on a heater (or alternatively a fan) at either set point, helping prevent the formation of condensation in the enclosure. Due to its wide voltage range the hygrotherm can be utilised anywhere in the world. The external sensor can be positioned freely anywhere in the enclosure for precise measurements.

Switch difference (temperature) 2K (±1K tolerance) at +25°C (+77°F), 50% RH
Switch difference (humidity) 4% RH (±1% tolerance) at +25°C (+77°F), 50% RH
Reaction time (humidity) approx. 5 sec.
Contact type change-over contact (relay)
Service life VDE: NO/NC > 15,000 cycles
UL: NO/NC > 30,000 cycles
Max. switching capacity 240VAC, 10 (1.6) A 60VDC, 0.6A¹
Max. inrush current AC 30A for 10 sec.
Optical indicator LED
Connection 5-pole terminal, clamping torque 0.5Nm max. Rigid/stranded² wire 2.5mm² (AWG 14)
Casing plastic according to UL94 V-0, light grey
Mounting clip for 35mm DIN rail, EN 60715 or screw fixing (M5), tightening torque 2Nm max.
Fitting position airflow direction up
Dimensions 77 x 60 x 43mm
Weight approx. 0.2kg
Operation/Storage temperature -40 to +60°C (-40 to +140°F)
Operation/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20
Approvals VDE, UL File No. E164102, EAC
