Hydrostat électronique – DC 20V à 56V

01012.0-xx
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

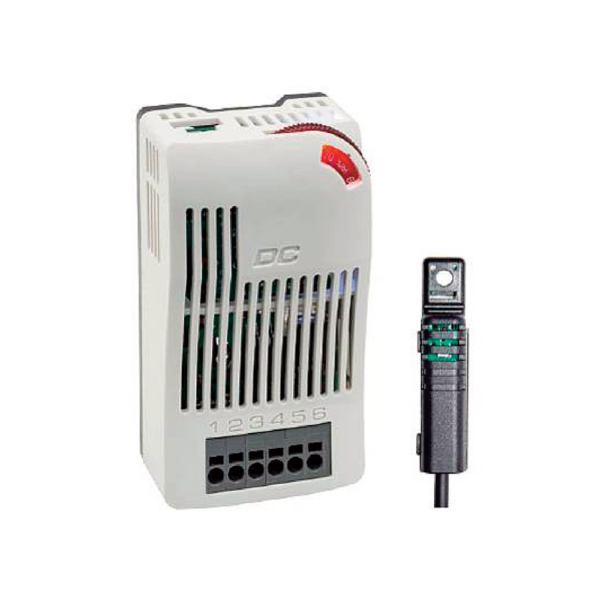

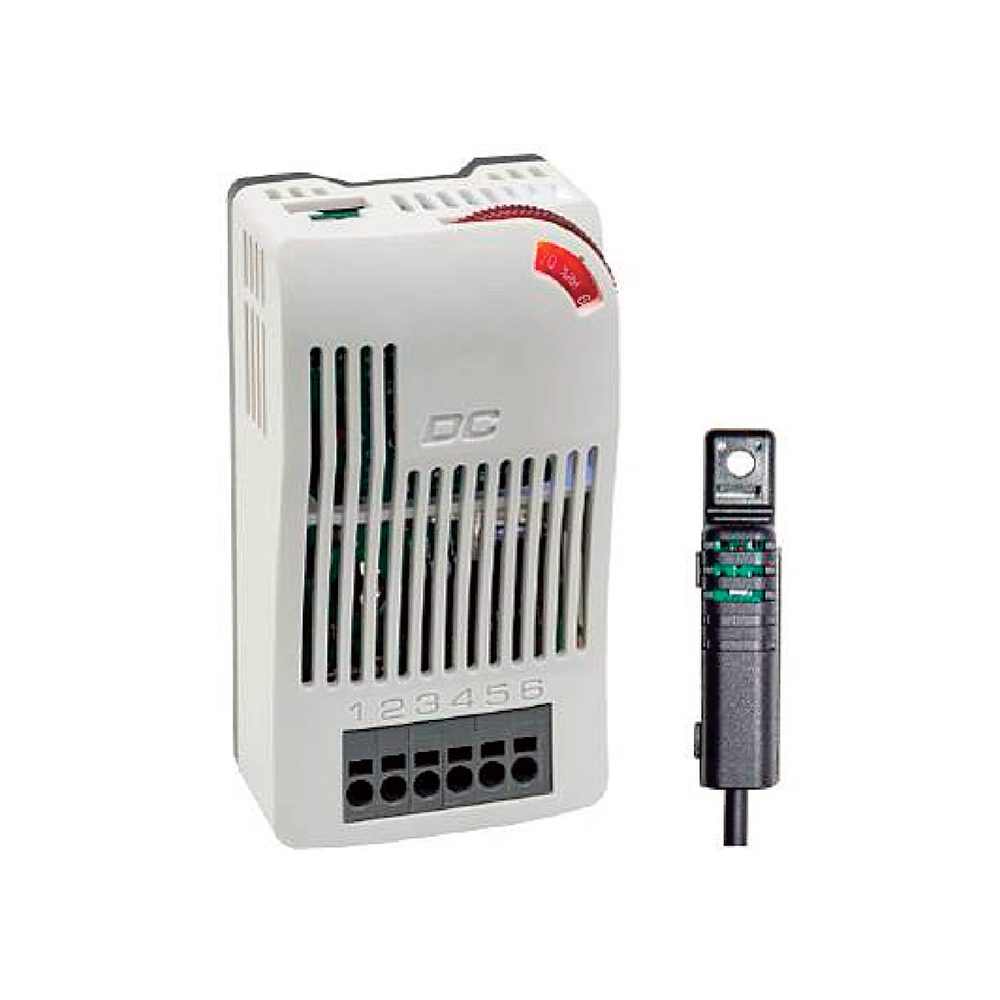

The electronic hygrostat with integrated switch module is used to control DC powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity. Additionally, this hygrostat is available in versions that not only measure the relative humidity via the external sensor, but also the temperature.

  • Switch difference (humidity) 4 % RH (±1 % tolerance) at +25 ÆC (+77 ÆF), 50 % RH
  • Reaction time approx. 5 sec.
  • Contact type contact maker NO (MOSFET) or contact breaker NC (MOSFET)
  • Service life > 100,000 cycles
  • Operating voltage DC 20 to 56 V

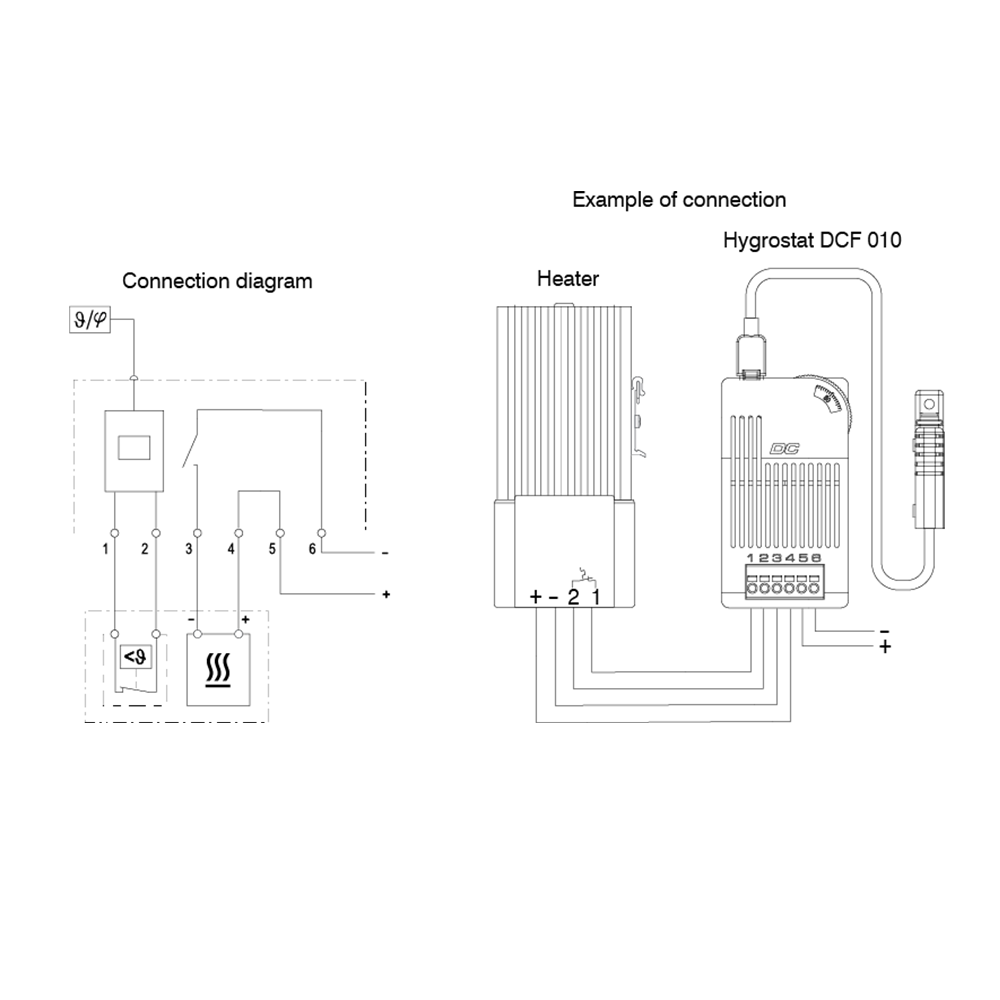

  • Connection 6-pole terminal: stranded wire1 1.5 mmÇ (AWG 16);
  • max. 2.5 mmÇ (AWG 12)
  • Casing plastic according to UL94 V-0, grey (bicolor)
  • Mounting clip for 35 mm DIN rail, EN 60715
  • Fitting position vertical
  • Storage temperature -40 to +80 ÆC (-40 to +176 ÆF)
  • Operating/Storage humidity max. 90 % RH (non-condensing)

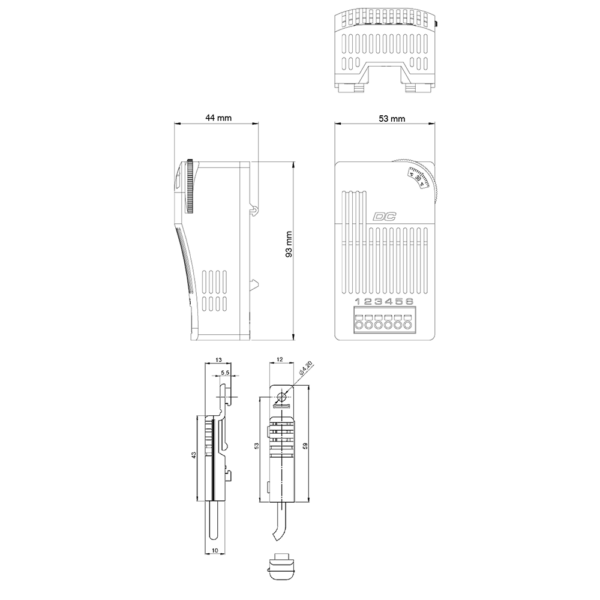

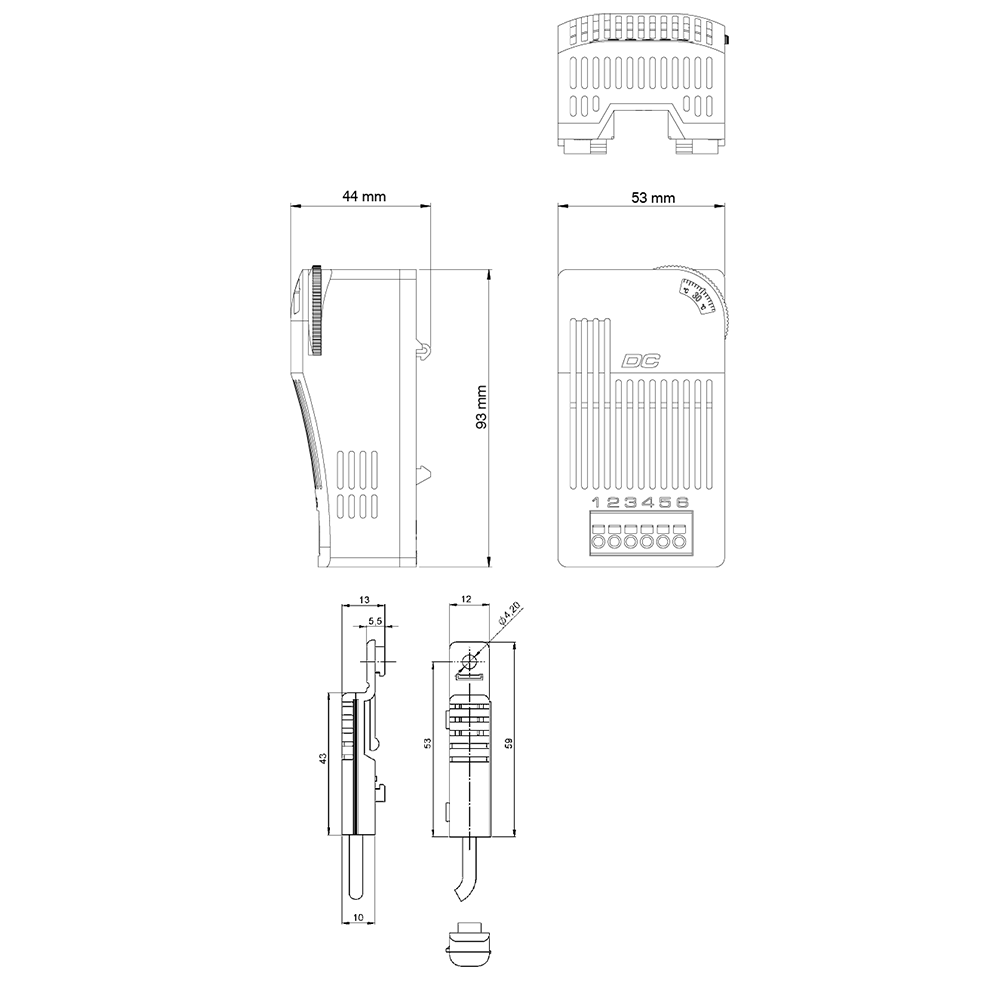

  • Dimensions 93 x 53 x 44 mm
  • Weight approx. 120 g (incl. sensor)
  • Protection type IP20
  • Approvals UL File No. E164102, VDE, EAC
