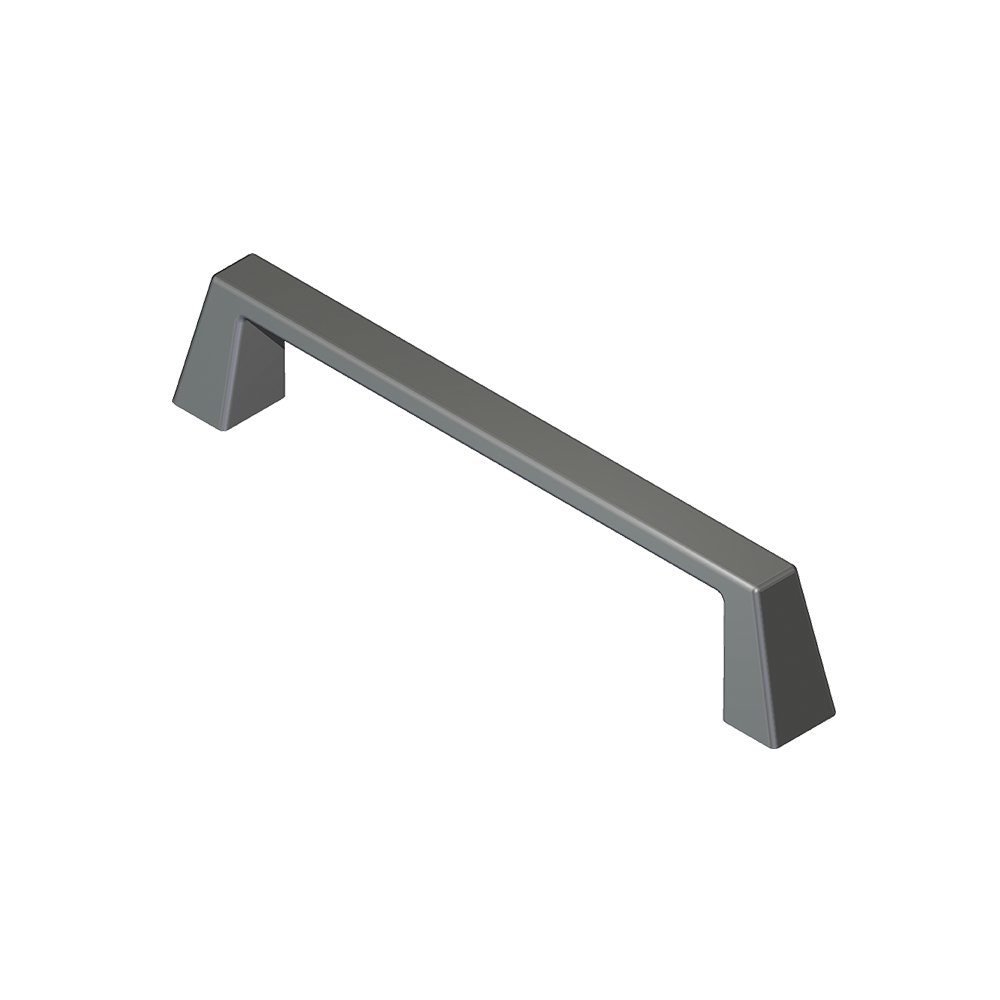

LIGHT DUTY

• The 880 HBL are designed for vertical or horizontal use, to carry or pull enclosures or equipment. Made from zinc die casting, they are fastened with M4 screws. The 1100 IB enclosures have knockouts at 3.94” (100mm) to permit assembly of these handles.

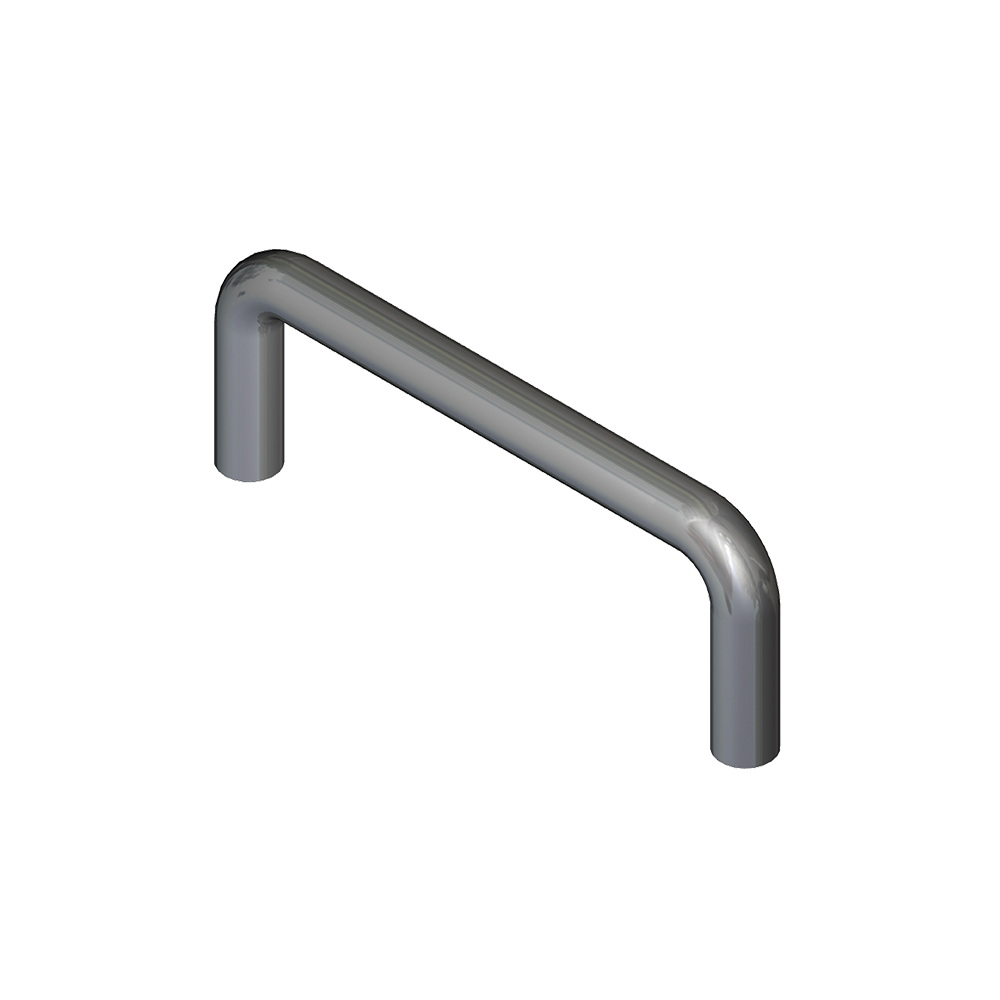

MEDIUM DUTY – ROUND

• The 880 HBMR are designed for vertical or horizontal use, to carry or pull enclosures or equipment. Made from aluminum, they are fastened with M5 screws. The 1100 IB enclosures have knockouts at 3.94” (100mm) to permit assembly of these handles.

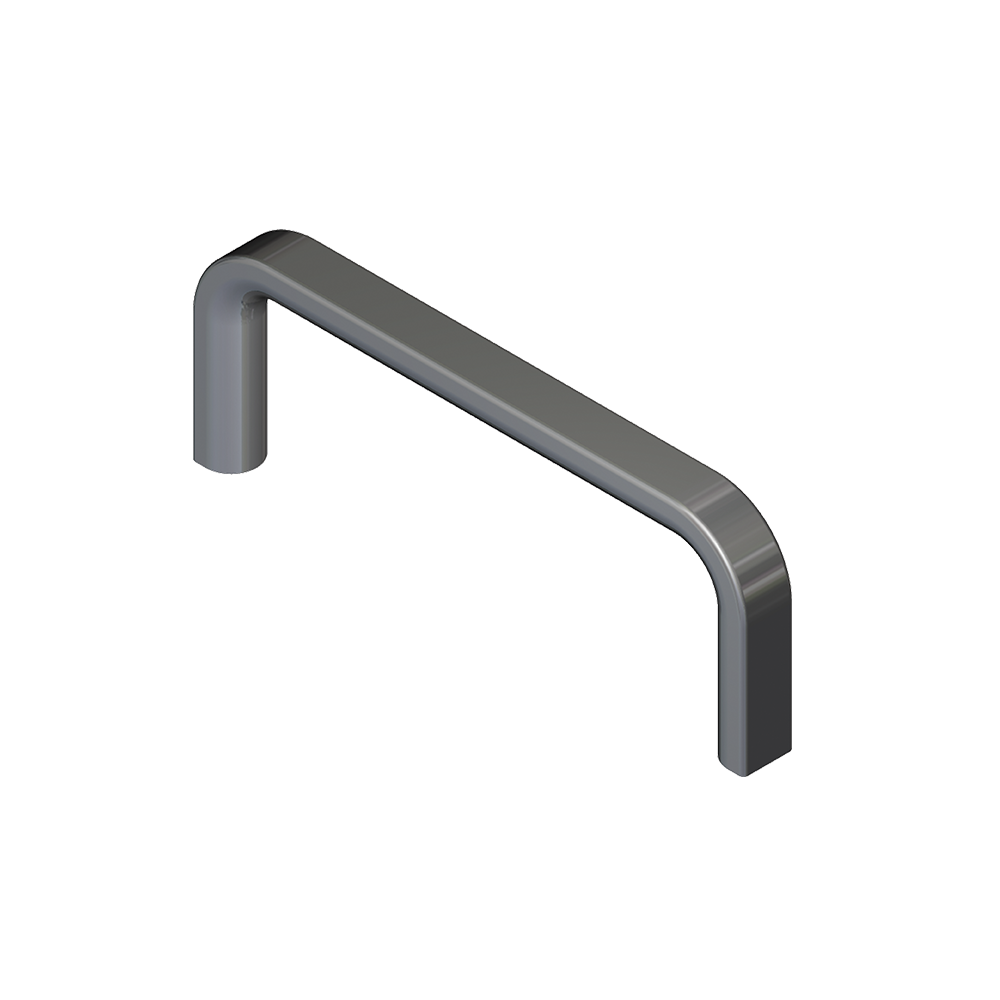

MEDIUM DUTY – HALF ROUND

• The 880 HBMH are designed for vertical or horizontal uses, to carry or pull enclosures or equipment. Made from aluminum, they are fastened with M5 screws. The 1100 IB enclosures have knockouts at 3.94” (100mm) to permit assembly of these handles.

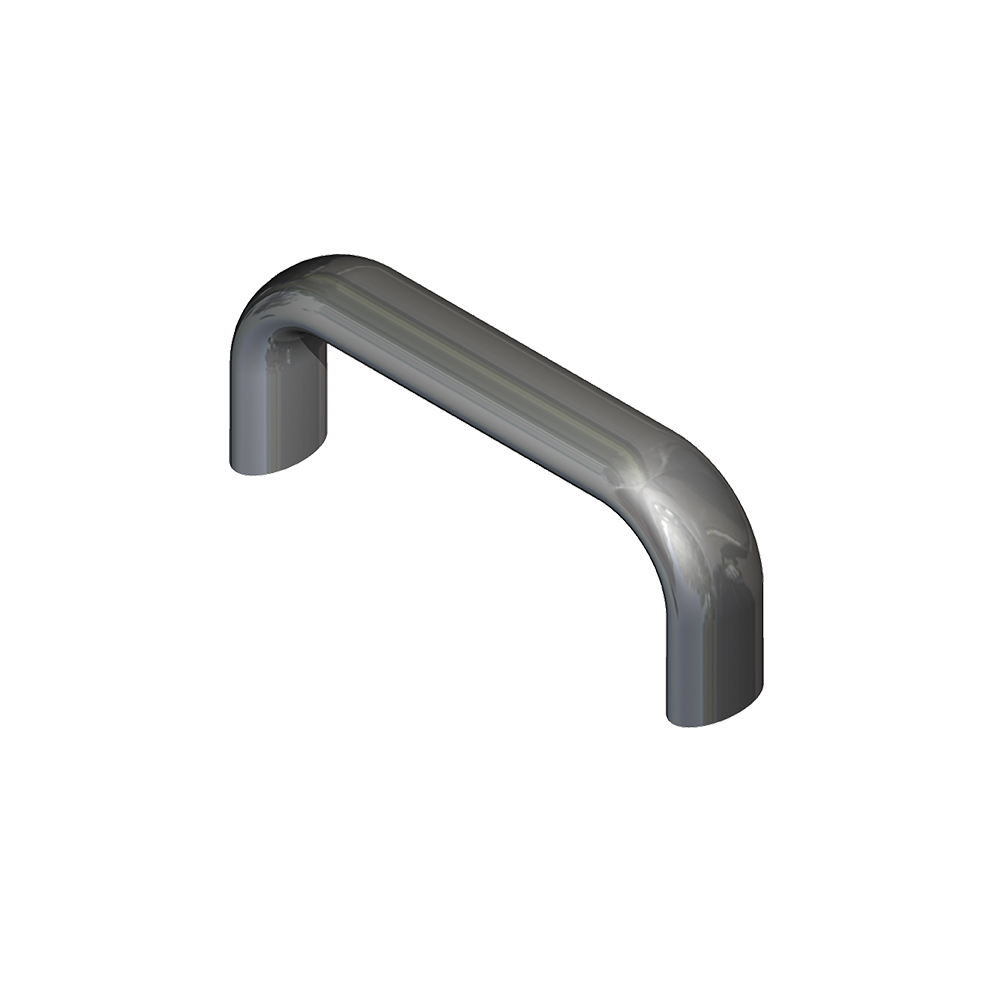

HEAVY DUTY – ELLIPSE

• The 880 HBLE are designed for vertical or horizontal uses, to carry or pull enclosures or equipment. Made from aluminum, they are fastened with M8 screws. Installation of these handles require drilling of two holes at 5.03 (128mm) center to center.

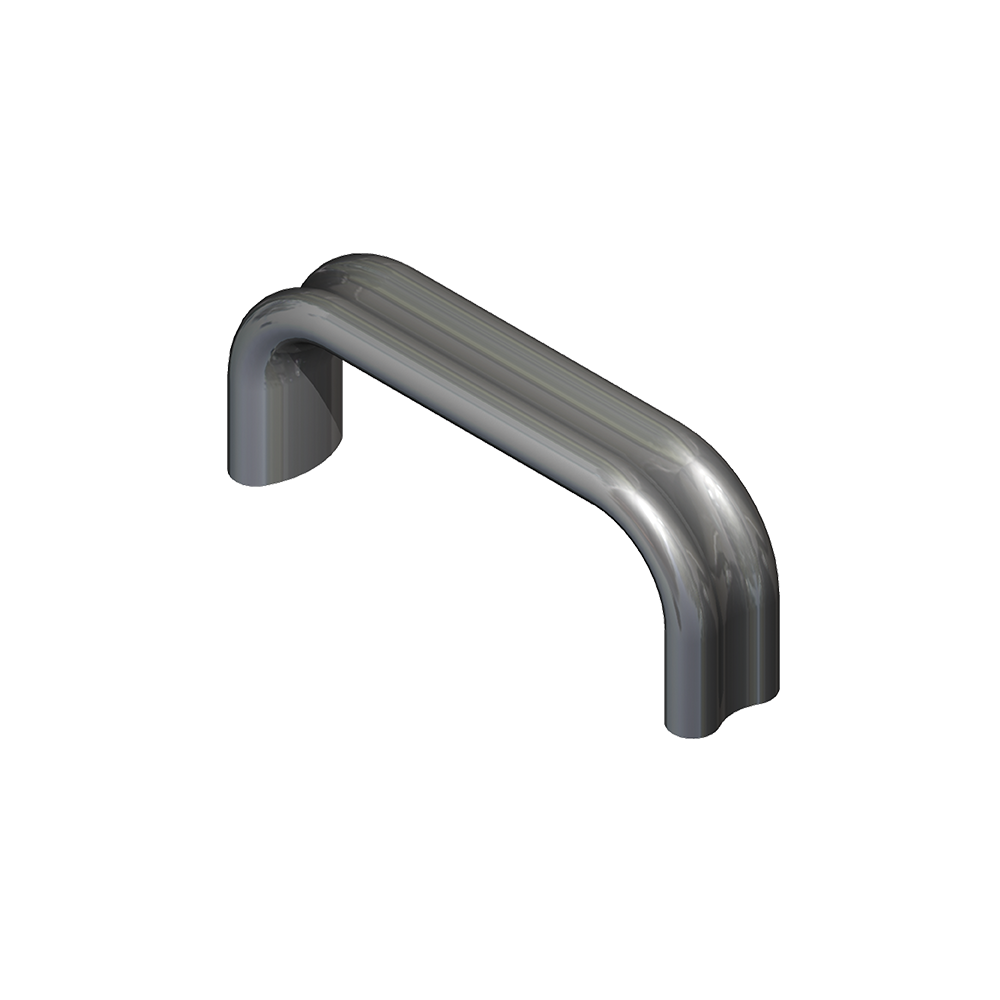

HEAVY DUTY – KIDNEY

• The 880 HBLK are designed for vertical or horizontal uses, to carry or pull enclosures or equipment. Made from aluminum, they are fastened with M8 screws. Installation of these handles require drilling of two holes at 5.03 (128mm) center to center.
