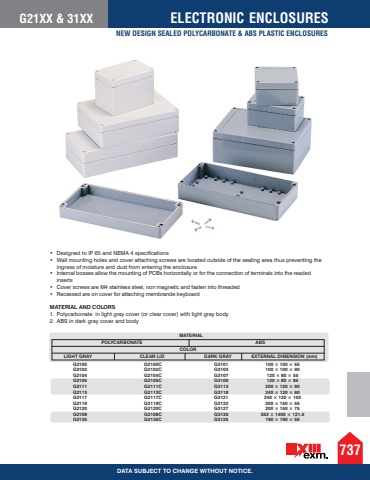

7379500 UXDDATA SUBJECT TO CHANGE WITHOUT NOTICE.G21XX & 31XX ELECTRONIC ENCLOSURES%u2022 Designed to IP 65 and NEMA 4 specifications %u2022 Wall mounting holes and cover attaching screws are located outside of the sealing area thus preventing the ingress of moisture and dust from entering the enclosure %u2022 Internal bosses allow the mounting of PCBs horizontally or for the connection of terminals into the readed inserts %u2022 Cover screws are M4 stainless steel, non magnetic and fasten into threaded %u2022 Recessed are on cover for attaching membrande keyboard MATERIAL AND COLORS 1. Polycarbonate in light gray cover (or clear cover) with light gray body 2. ABS in dark gray cover and bodyMATERIALCOLOR LIGHT GRAY CLEAR LID DARK GRAY EXTERNAL DIMENSION (mm) G2100 G2102 G2104 G2105 G2111 G2113 G2117G2119 G2120 G2108 G2135G3101 G3103 G3107 G3109 G3113 G3118 G3121 G3122G3127 G3130G3125G2100C G2102C G2104C G2105C G2111C G2113C G2117C G2119C G2120C G2108C G2135C100 %u00d7 100 %u00d7 55 100 %u00d7 100 %u00d7 90 120 %u00d7 80 %u00d7 55 120 %u00d7 80 %u00d7 85 200 %u00d7 120 %u00d7 90 240 %u00d7 120 %u00d7 60 240 %u00d7 120 %u00d7 100 200 %u00d7 150 %u00d7 55 200 %u00d7 150 %u00d7 75 353 %u00d7 1400 %u00d7 121.5 190 %u00d7 190 %u00d7 55POLYCARBONATE ABSNEW DESIGN SEALED POLYCARBONATE & ABS PLASTIC ENCLOSURES
