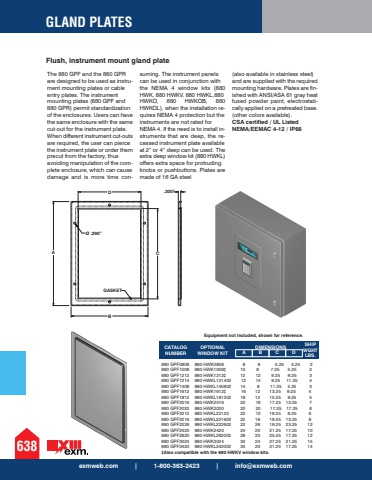

exmweb.com | 1-800-363-2423 | [email protected] PLATES638CATALOG NUMBER A B CDIMENSIONS880 GPF0808 880 HWK0808 8 8 5.25 5.25 2 880 GPF1008 880 HWK1008%u2021 10 8 7.25 5.25 2 880 GPF1212 880 HWK1212%u2021 12 12 9.25 9.25 3 880 GPF1214 880 HWKL121402 12 14 9.25 11.25 4 880 GPF1408 880 HWKL140802 14 8 11.25 5.25 3 880 GPF1612 880 HWK1612%u2021 16 12 13.25 9.25 4 880 GPF1812 880 HWKL181202 18 12 15.25 9.25 5 880 GPF2016 880 HWK2016 20 16 17.25 13.25 7 880 GPF2020 880 HWK2020 20 20 17.25 17.25 8 880 GPF2212 880 HWKL22120 22 12 19.25 9.25 6 880 GPF2216 880 HWKL221602 22 16 19.25 13.25 8 880 GPF2226 880 HWKL222602 22 26 19.25 23.25 12 880 GPF2420 880 HWK2420 24 20 21.25 17.25 10 880 GPF2820 880 HWKL282002 28 20 25.25 17.25 12 880 GPF3024 880 HWK3024 30 24 27.25 21.25 15 880 GPF3420 880 HWKL342002 34 20 31.25 17.25 14 %u2021Also compatible with the 880 HWKV window kits.SHIP WGHT LBS.CD .300%u201d%u00d8 .290%u201dGASKETABDOPTIONAL WINDOW KITEquipment not included, shown for reference.The 880 GPF and the 880 GPR are designed to be used as instrument mounting plates or cable entry plates. The instrument mounting plates (880 GPF and 880 GPR) permit standardization of the enclosures. Users can have the same enclosure with the same cut-out for the instrument plate. When different instrument cut-outs are required, the user can pierce the instrument plate or order them precut from the factory, thus avoiding manipulation of the complete enclosure, which can cause damage and is more time consuming. The instrument panels can be used in conjunction with the NEMA 4 window kits (880 HWK, 880 HWKV, 880 HWKL,880 HWKO, 880 HWKOB, 880 HWKOL), when the installation requires NEMA 4 protection but the instruments are not rated for NEMA 4. If the need is to install instruments that are deep, the recessed instrument plate available at 2%u201d or 4%u201d deep can be used. The extra deep window kit (880 HWKL) offers extra space for protruding knobs or pushbuttons. Plates are made of 16 GA steel (also available in stainless steel) and are supplied with the required mounting hardware. Plates are finished with ANSI/ASA 61 gray heat fused powder paint, electrostatically applied on a pretreated base. (other colors available). CSA certified / UL Listed NEMA/EEMAC 4-12 / IP66Flush, instrument mount gland plate
