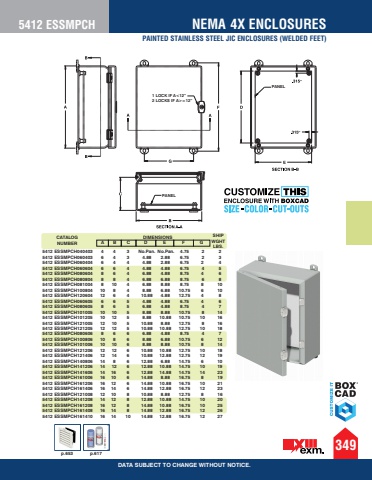

5412 ESSMPCHDATA SUBJECT TO CHANGE WITHOUT NOTICE.1 LOCK IF A<12%u201d2 LOCKS IF A>=12%u201dPANELPANEL%u201d%u201dCATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESSMPCH040403 4 4 3 No.Pan. No.Pan. 4.75 2 25412 ESSMPCH060403 6 4 3 4.88 2.88 6.75 2 35412 ESSMPCH060404 6 4 4 4.88 2.88 6.75 2 45412 ESSMPCH060604 6 6 4 4.88 4.88 6.75 4 55412 ESSMPCH080604 8 6 4 6.88 4.88 8.75 4 65412 ESSMPCH080804 8 8 4 6.88 6.88 8.75 6 85412 ESSMPCH081004 8 10 4 6.88 8.88 8.75 8 105412 ESSMPCH100804 10 8 4 8.88 6.88 10.75 6 105412 ESSMPCH120604 12 6 4 10.88 4.88 12.75 4 85412 ESSMPCH060605 6 6 5 4.88 4.88 6.75 4 65412 ESSMPCH080605 8 6 5 6.88 4.88 8.75 4 75412 ESSMPCH101005 10 10 5 8.88 8.88 10.75 8 145412 ESSMPCH101205 10 12 5 8.88 10.88 10.75 10 165412 ESSMPCH121005 12 10 5 10.88 8.88 12.75 8 165412 ESSMPCH121205 12 12 5 10.88 10.88 12.75 10 185412 ESSMPCH080606 8 6 6 6.88 4.88 8.75 4 75412 ESSMPCH100806 10 8 6 8.88 6.88 10.75 6 125412 ESSMPCH101006 10 10 6 8.88 8.88 10.75 8 145412 ESSMPCH121206 12 12 6 10.88 10.88 12.75 10 185412 ESSMPCH121406 12 14 6 10.88 12.88 12.75 12 195412 ESSMPCH140806 14 8 6 12.88 6.88 14.75 6 105412 ESSMPCH141206 14 12 6 12.88 10.88 14.75 10 195412 ESSMPCH141606 14 16 6 12.88 14.88 14.75 14 235412 ESSMPCH161006 16 10 6 14.88 8.88 16.75 8 195412 ESSMPCH161206 16 12 6 14.88 10.88 16.75 10 215412 ESSMPCH161406 16 14 6 14.88 12.88 16.75 12 235412 ESSMPCH121008 12 10 8 10.88 8.88 12.75 8 165412 ESSMPCH141208 14 12 8 12.88 10.88 14.75 10 205412 ESSMPCH161208 16 12 8 14.88 10.88 16.75 10 255412 ESSMPCH161408 16 14 8 14.88 12.88 16.75 12 265412 ESSMPCH161410 16 14 10 14.88 12.88 16.75 12 27p.653 p.617PAINTED STAINLESS STEEL JIC ENCLOSURES (WELDED FEET)349NEMA 4X ENCLOSURES
