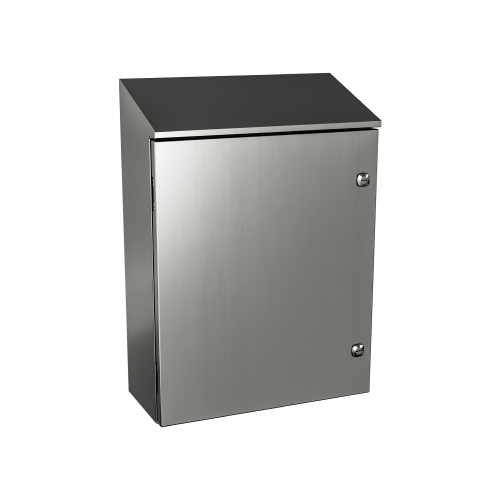

The 5412 ESSCET series is used indoors or outdoors in areas where the enclosures may be subject to hosing or to water coming from any direction or for protection against dust, dirt or oil splashing. These enclosures have a sloped top. Made of high quality 304 stainless steel #4, with continuously welded corner seams. The cover is secured by ¼ turn locks (or a 3 point lock mechanism on larger enclosures). A robotically poured-in-place seamless gasket ensures a durable seal. The cabinet has tamper resistant hinges, with stainless steel captive pins. Mounting holes are provided on the back face of the enclosure. The body’s construction is designed to prevent dripping water from entering the enclosure. Enclosure comes complete with a galvanized inner panel. Exterior is unpainted and brushed smooth.
CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESSCET161208 | 16 | 12 | 8 | 35 lbs | 2D PDF | 3D File |
| 5412 ESSCET161608 | 16 | 16 | 8 | 44 lbs | 2D PDF | 3D File |
| 5412 ESSCET201608 | 20 | 16 | 8 | 53 lbs | 2D PDF | 3D File |
| 5412 ESSCET202008 | 20 | 20 | 8 | 62 lbs | 2D PDF | 3D File |
| 5412 ESSCET202012 | 20 | 20 | 12 | 53 lbs | 2D PDF | 3D File |
| 5412 ESSCET241608 | 24 | 16 | 8 | 48 lbs | 2D PDF | 3D File |
| 5412 ESSCET242008 | 24 | 20 | 8 | 57 lbs | 2D PDF | 3D File |
| 5412 ESSCET242408 | 24 | 24 | 8 | 67 lbs | 2D PDF | 3D File |
| 5412 ESSCET242412 | 24 | 24 | 12 | 76 lbs | 2D PDF | 3D File |
| 5412 ESSCET302408 | 30 | 24 | 8 | 81 lbs | 2D PDF | 3D File |
| 5412 ESSCET302412 | 30 | 24 | 12 | 92 lbs | 2D PDF | 3D File |
| 5412 ESSCET303012 | 30 | 30 | 12 | 92 lbs | 2D PDF | 3D File |
| 5412 ESSCET362412 | 36 | 24 | 12 | 110 lbs | 2D PDF | 3D File |
| 5412 ESSCET363008 | 36 | 30 | 8 | 116 lbs | 2D PDF | 3D File |
| 5412 ESSCET363012 | 36 | 30 | 12 | 129 lbs | 2D PDF | 3D File |
| 5412 ESSCET363612 | 36 | 36 | 12 | 150 lbs | 2D PDF | 3D File |
| 5412 ESSCET423008 | 42 | 30 | 8 | 133 lbs | 2D PDF | 3D File |
| 5412 ESSCET423616 | 42 | 36 | 16 | 187 lbs | 2D PDF | 3D File |
| 5412 ESSCET483616 | 48 | 36 | 16 | 187 lbs | 2D PDF | 3D File |
| 5412 ESSCET603616 | 60 | 36 | 16 | 187 lbs | 2D PDF | 3D File |
