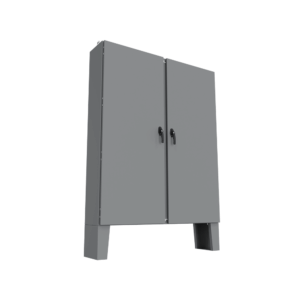

The 9412 STSSDD water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 9412 STSSDD are made of high quality Type 304 stainless steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured in place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. Quarter turn locking mechanisms on three sides of the door ensure positive closing. Optional inner panel, which mounts on welded M10 studs. A print pocket is provided. The enclosures are brushed smooth.
CSA Certified / UL Listed NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 9412 STSSDD604818 | 60 | 48 | 18 | 464 lbs | 2D PDF | 3D File |
| 9412 STSSDD724818 | 72 | 48 | 18 | 625 lbs | 2D PDF | 3D File |
| 9412 STSSDD724824 | 72 | 48 | 24 | 702 lbs | 2D PDF | 3D File |
| 9412 STSSDD726018 | 72 | 60 | 18 | 639 lbs | 2D PDF | 3D File |
| 9412 STSSDD726024 | 72 | 60 | 24 | 760 lbs | 2D PDF | 3D File |
| 9412 STSSDD726036 | 72 | 60 | 36 | 766 lbs | 2D PDF | 3D File |
| 9412 STSSDD727218 | 72 | 72 | 18 | 689 lbs | 2D PDF | 3D File |
| 9412 STSSDD727224 | 72 | 72 | 24 | 772 lbs | 2D PDF | 3D File |
| 9412 STSSDD904820 | 90 | 48 | 20 | 842 lbs | 2D PDF | 3D File |
| 9412 STSSDD907220 | 90 | 72 | 20 | 870 lbs | 2D PDF | 3D File |
| 9412 STSSDD907224 | 90 | 72 | 24 | 882 lbs | 2D PDF | 3D File |
| 9412 STSSDD907236 | 90 | 72 | 36 | 898 lbs | 2D PDF | 3D File |
