NEMA Rating RoHS CSA Underwriter Laboratories CE mark

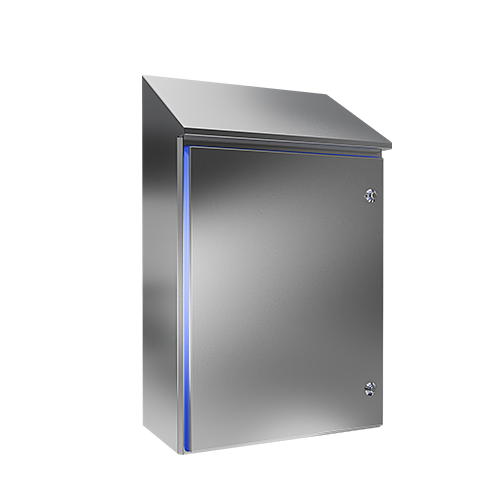

Type 4X | Hygienic Stainless Steel Enclosure

5412 ESSHY
Stainless steel 304NEMA 4XIP 66

The 5412 ESSHY water, oil & dust tight enclosures are used for food and beverage applications, in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing.

CSA Certified / UL Listed
NEMA/EEMAC 4X / IP66



  • The enclosure has a Brushed #4 finish.
  • Sloped top allows for a thorough washdown procedures.
  • FDA 21 CFR 177.2600 compliant stainless steel locks and gasket.
  • A dual gasket solution consisting of a durable RAL5010 blue seal and a poured-in-place gasket maintains the enclosure’s rating for harsh washdown procedures.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESSHY161608 16 16 8 36 lbs 2D PDF | 3D File
5412 ESSHY242010 24 20 10 65 lbs 2D PDF | 3D File
