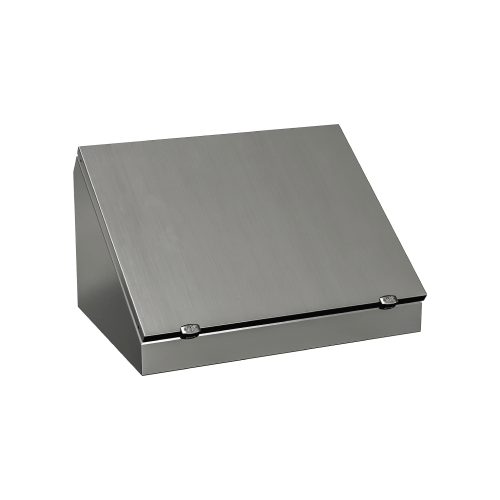

The 1412 CSS stainless steel consolets are used to protect electrical equipment against dirt, dust, oil and water splashing. The 1412 CSS consolets can be mounted on pedestals (1500 PESS, see p.416), desktops or machines with the choice of a control surface of 35° or 55°. Consolets are made of 16 GA (Type 304) stainless steel with all seams continuously welded. The cover has a continuous formed hinge. The door is secured by EXM’s exclusive flangemounted quarter-turn locks, which ensure positive closing. These locks are also made of stainless steel. A high quality, seamless gasket, which is poured in place, is used to ensure the integrity of the enclosure. Pedestals and base, if required, must be ordered separately. The consolets’ exterior is unpainted and brushed smooth. The consolets’ interior is finished with white heat fused powder paint, electrostatically applied on a pretreated base.
CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55 NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 CSS202013 | 20 | 20 | 13 | 36 lbs | 2D PDF | 3D File |
| 1412 CSS202413 | 20 | 24 | 13 | 42 lbs | 2D PDF | 3D File |
| 1412 CSS080807 | 8 | 8 | 7 | 8 lbs | 2D PDF | 3D File |
| 1412 CSS081207 | 8 | 12 | 7 | 10 lbs | 2D PDF | 3D File |
| 1412 CSS081607 | 8 | 16 | 7 | 13 lbs | 2D PDF | 3D File |
| 1412 CSS082007 | 8 | 20 | 7 | 16 lbs | 2D PDF | 3D File |
| 1412 CSS121209 | 12 | 12 | 9 | 15 lbs | 2D PDF | 3D File |
| 1412 CSS121609 | 12 | 16 | 9 | 18 lbs | 2D PDF | 3D File |
| 1412 CSS122009 | 12 | 20 | 9 | 22 lbs | 2D PDF | 3D File |
| 1412 CSS122409 | 12 | 24 | 9 | 26 lbs | 2D PDF | 3D File |
| 1412 CSS161611 | 16 | 16 | 11 | 22 lbs | 2D PDF | 3D File |
| 1412 CSS162011 | 16 | 20 | 11 | 27 lbs | 2D PDF | 3D File |
| 1412 CSS162411 | 16 | 24 | 11 | 32 lbs | 2D PDF | 3D File |
| 1412 CSS163011 | 16 | 30 | 11 | 39 lbs | 2D PDF | 3D File |
| 1412 CSS163611 | 16 | 36 | 11 | 45 lbs | 2D PDF | 3D File |
| 1412 CSS203013 | 20 | 30 | 13 | 49 lbs | 2D PDF | 3D File |
| 1412 CSS080807P | 8 | 8 | 7 | 8 lbs | 2D PDF | 3D File |
| 1412 CSS081207P | 8 | 12 | 7 | 10 lbs | 2D PDF | 3D File |
| 1412 CSS081607P | 8 | 16 | 7 | 13 lbs | 2D PDF | 3D File |
| 1412 CSS082007P | 8 | 20 | 7 | 16 lbs | 2D PDF | 3D File |
| 1412 CSS121209P | 12 | 12 | 9 | 15 lbs | 2D PDF | 3D File |
| 1412 CSS121609P | 12 | 16 | 9 | 18 lbs | 2D PDF | 3D File |
| 1412 CSS122009P | 12 | 20 | 9 | 22 lbs | 2D PDF | 3D File |
| 1412 CSS122409P | 12 | 24 | 9 | 26 lbs | 2D PDF | 3D File |
| 1412 CSS161611P | 16 | 16 | 11 | 22 lbs | 2D PDF | 3D File |
| 1412 CSS162011P | 16 | 20 | 11 | 27 lbs | 2D PDF | 3D File |
| 1412 CSS162411P | 16 | 24 | 11 | 32 lbs | 2D PDF | 3D File |
| 1412 CSS163011P | 16 | 30 | 11 | 39 lbs | 2D PDF | 3D File |
| 1412 CSS163611P | 16 | 36 | 11 | 45 lbs | 2D PDF | 3D File |
| 1412 CSS202013P | 20 | 20 | 13 | 36 lbs | 2D PDF | 3D File |
| 1412 CSS202413P | 20 | 24 | 13 | 42 lbs | 2D PDF | 3D File |
| 1412 CSS203013P | 20 | 30 | 13 | 49 lbs | 2D PDF | 3D File |
