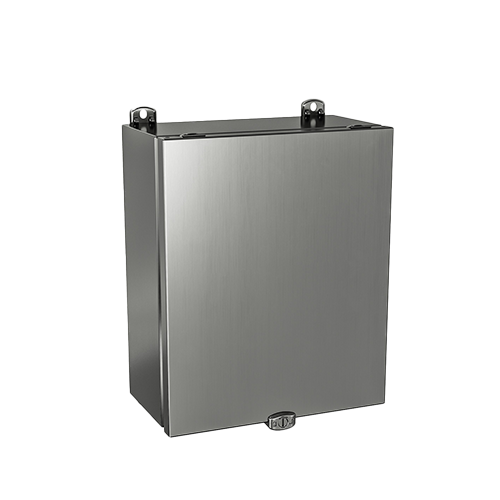

The 5412 ESSLC lift off cover, water oil and dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem may exist, or where the enclosures may be subjected to hosing or water coming from any direction. The box and cover are made of high quality 16 GA (Type 304) stainless steel, with all seams continuously welded. A high quality, roboticaly pouredinplace, seamless gasket ensures a complete and durable water tight seal. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering when the door is open. A flange-mounted ¼ turn lock ensures positive closing. The enclosure can be internally or externally mounted using the included die cast wall mounting feet. Each enclosure comes complete with a 14 GA galvanized steel inner panel, which mounts on welded nuts. The enclosures are brushed stainless steel.
CSA Certified / UL Listed NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESSLC060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSLC060404 | 6 | 4 | 4 | 4 lbs | 2D PDF | 3D File |
| 5412 ESSLC060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 5412 ESSLC080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSLC100804 | 10 | 8 | 4 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSLC121005 | 12 | 10 | 5 | 13 lbs | 2D PDF | 3D File |
| 5412 ESSLC141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESSLC141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | 3D File |
| 5412 ESSLC161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | 3D File |
| 5412 ESSLC161410 | 16 | 14 | 10 | 25 lbs | 2D PDF | 3D File |
| 5412 ESSLC060403P | 6 | 4 | 3 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSLC060404P | 6 | 4 | 4 | 4 lbs | 2D PDF | 3D File |
| 5412 ESSLC060604P | 6 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 5412 ESSLC080604P | 8 | 6 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSLC100804P | 10 | 8 | 4 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSLC121005P | 12 | 10 | 5 | 13 lbs | 2D PDF | 3D File |
| 5412 ESSLC141206P | 14 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESSLC141208P | 14 | 12 | 8 | 20 lbs | 2D PDF | 3D File |
| 5412 ESSLC161406P | 16 | 14 | 6 | 23 lbs | 2D PDF | 3D File |
| 5412 ESSLC161410P | 16 | 14 | 10 | 25 lbs | 2D PDF | 3D File |
