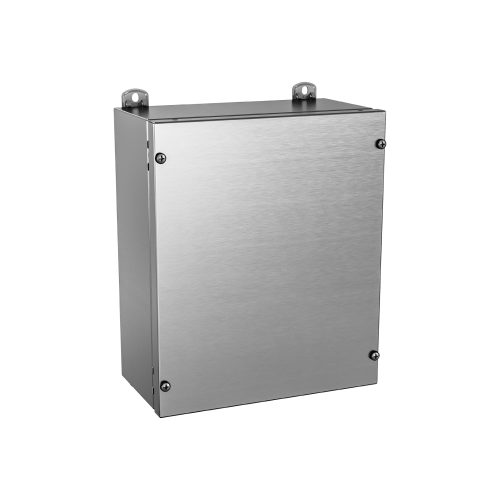

The 5412 EALSC aluminium screw cover enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. The box and cover are made of high quality type 5052 H-32 aluminium. with all seams continuously welded. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The enclosure can be internally or externally mounted using the included die cast wall mounting feet. These feet have oblong holes to facilitate installation. Each enclosure comes complete with a 14 GA galvanized inner panel, which mounts on weld nuts. Enclosure are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 EALSC060403 | 6 | 4 | 3.312 | 3 lbs | 2D PDF | 3D File |
| 5412 EALSC060404 | 6 | 4 | 4.312 | 4 lbs | 2D PDF | 3D File |
| 5412 EALSC060604 | 6 | 6 | 4.312 | 5 lbs | 2D PDF | 3D File |
| 5412 EALSC080604 | 8 | 6 | 4.312 | 6 lbs | 2D PDF | 3D File |
| 5412 EALSC080606 | 8 | 6 | 6.312 | 7 lbs | 2D PDF | 3D File |
| 5412 EALSC080804 | 8 | 8 | 4.312 | 8 lbs | 2D PDF | 3D File |
| 5412 EALSC100804 | 10 | 8 | 4.312 | 9 lbs | 2D PDF | 3D File |
| 5412 EALSC100806 | 10 | 8 | 6.312 | 10 lbs | 2D PDF | 3D File |
| 5412 EALSC101004 | 10 | 10 | 4-312 | 10 lbs | 2D PDF | 3D File |
| 5412 EALSC101006 | 10 | 10 | 6-312 | 11 lbs | 2D PDF | 3D File |
| 5412 EALSC120202 | 12 | 2 | 2.312 | 3 lbs | 2D PDF | 3D File |
| 5412 EALSC120404 | 12 | 4 | 4.312 | 6 lbs | 2D PDF | 3D File |
| 5412 EALSC120606 | 12 | 6 | 6.312 | 9 lbs | 2D PDF | 3D File |
| 5412 EALSC121005 | 12 | 10 | 5.312 | 13 lbs | 2D PDF | 3D File |
| 5412 EALSC121206 | 12 | 12 | 6.312 | 15 lbs | 2D PDF | 3D File |
| 5412 EALSC141206 | 14 | 12 | 6.312 | 19 lbs | 2D PDF | 3D File |
| 5412 EALSC141208 | 14 | 12 | 8.312 | 20 lbs | 2D PDF | 3D File |
| 5412 EALSC160404 | 16 | 4 | 4.312 | 6 lbs | 2D PDF | 3D File |
| 5412 EALSC160606 | 16 | 6 | 6.312 | 11 lbs | 2D PDF | 3D File |
| 5412 EALSC161406 | 16 | 14 | 6.312 | 23 lbs | 2D PDF | 3D File |
| 5412 EALSC161410 | 16 | 14 | 10.312 | 25 lbs | 2D PDF | 3D File |
