Wall Mount

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

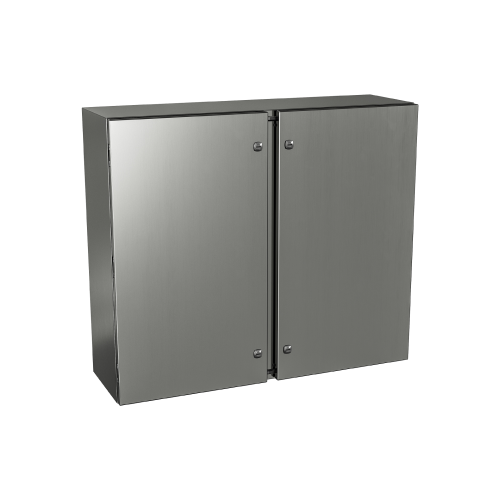

Type 4X, 12 | Double door stainless steel enclosure, protection against corrosion

5412 ESSDD
IP 66,54NEMA 4X, 12Inner PanelDouble Door
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close
BoxCad Customize it here

The 5412 ESSDD series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.

  • Made of high quality 304 stainless steel with continuously welded corner seams.
  • The covers are secured by ¼ turn locks.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has stainless steel hinges, with safety pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • The center post is removable to facilitate the installation of the inner panel.
  • Exterior is unpainted and has a finish brushed #4.
  • CSA certified.
  • UL listed.
  • NEMA 4X,12.
  • IEC 60529 IP66.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESSDD244208 24 42 8 117 lbs 2D PDF | Zip Archive
5412 ESSDD244210 24 42 10 150 lbs 2D PDF | Zip Archive
5412 ESSDD244808 24 48 8 130 lbs 2D PDF | Zip Archive
5412 ESSDD304210 30 42 10 152 lbs 2D PDF | Zip Archive
5412 ESSDD304810 30 48 10 168 lbs 2D PDF | Zip Archive
5412 ESSDD306010 30 60 10 203 lbs 2D PDF | Zip Archive
5412 ESSDD364212 36 42 12 220 lbs 2D PDF | Zip Archive
5412 ESSDD364812 36 48 12 242 lbs 2D PDF | Zip Archive
5412 ESSDD366012 36 60 12 292 lbs 2D PDF | Zip Archive
5412 ESSDD424212 42 42 12 197 lbs 2D PDF | Zip Archive
5412 ESSDD424812 42 48 12 216 lbs 2D PDF | Zip Archive
5412 ESSDD426012 42 60 12 349 lbs 2D PDF | Zip Archive
5412 ESSDD484812 48 48 12 225 lbs 2D PDF | Zip Archive
5412 ESSDD544208 54 42 8 272 lbs 2D PDF | Zip Archive
5412 ESSDD244208TH 24 42 8 117 lbs 2D PDF | Zip Archive
5412 ESSDD244210TH 24 42 10 150 lbs 2D PDF | Zip Archive
5412 ESSDD244808TH 24 48 8 130 lbs 2D PDF | Zip Archive
5412 ESSDD304210TH 30 42 10 152 lbs 2D PDF | Zip Archive
5412 ESSDD304810TH 30 48 10 168 lbs 2D PDF | Zip Archive
5412 ESSDD306010TH 30 60 10 203 lbs 2D PDF | Zip Archive
5412 ESSDD364212TH 36 42 12 220 lbs 2D PDF | Zip Archive
5412 ESSDD364812TH 36 48 12 242 lbs 2D PDF | Zip Archive
5412 ESSDD366012TH 36 60 12 292 lbs 2D PDF | Zip Archive
5412 ESSDD424212TH 42 42 12 197 lbs 2D PDF | Zip Archive
5412 ESSDD424812TH 42 48 12 216 lbs 2D PDF | Zip Archive
5412 ESSDD426012TH 42 60 12 349 lbs 2D PDF | Zip Archive
5412 ESSDD484812TH 48 48 12 225 lbs 2D PDF | Zip Archive
5412 ESSDD544208TH 54 42 8 272 lbs 2D PDF | Zip Archive
5412 ESSDD2442086 24 42 8 117 lbs 2D PDF | Zip Archive
5412 ESSDD2442106 24 42 10 150 lbs 2D PDF | Zip Archive
5412 ESSDD2448086 24 48 8 130 lbs 2D PDF | Zip Archive
5412 ESSDD3042106 30 42 10 152 lbs 2D PDF | Zip Archive
5412 ESSDD3048106 30 48 10 168 lbs 2D PDF | Zip Archive
5412 ESSDD3060106 30 60 10 203 lbs 2D PDF | Zip Archive
5412 ESSDD3642126 36 42 12 220 lbs 2D PDF | Zip Archive
5412 ESSDD3648126 36 48 12 242 lbs 2D PDF | Zip Archive
5412 ESSDD3660126 36 60 12 292 lbs 2D PDF | Zip Archive
5412 ESSDD4242126 42 42 12 197 lbs 2D PDF | Zip Archive
5412 ESSDD4248126 42 48 12 216 lbs 2D PDF | Zip Archive
5412 ESSDD4260126 42 60 12 349 lbs 2D PDF | Zip Archive
5412 ESSDD4848126 48 48 12 225 lbs 2D PDF | Zip Archive
5412 ESSDD5442086 54 42 8 272 lbs 2D PDF | Zip Archive
5412 ESSDD2442086TH 24 42 8 64 lbs 2D PDF | Zip Archive
5412 ESSDD2442106TH 24 42 10 95 lbs 2D PDF | Zip Archive
5412 ESSDD2448086TH 24 48 8 93 lbs 2D PDF | Zip Archive
5412 ESSDD3042106TH 30 42 10 110 lbs 2D PDF | Zip Archive
5412 ESSDD3048106TH 30 48 10 121 lbs 2D PDF | Zip Archive
5412 ESSDD3060106TH 30 60 10 143 lbs 2D PDF | Zip Archive
5412 ESSDD3642126TH 36 42 12 133 lbs 2D PDF | Zip Archive
5412 ESSDD3648126TH 36 48 12 149 lbs 2D PDF | Zip Archive
5412 ESSDD3660126TH 36 60 12 176 lbs 2D PDF | Zip Archive
5412 ESSDD4242126TH 42 42 12 152 lbs 2D PDF | Zip Archive
5412 ESSDD4248126TH 42 48 12 166 lbs 2D PDF | Zip Archive
5412 ESSDD4260126TH 42 60 12 178 lbs 2D PDF | Zip Archive
5412 ESSDD4848126TH 48 48 12 183 lbs 2D PDF | Zip Archive
5412 ESSDD5442086TH 54 42 8 158 lbs 2D PDF | Zip Archive
5412 ESSDD244208P 24 42 8 117 lbs 2D PDF | Zip Archive
5412 ESSDD244210P 24 42 10 150 lbs 2D PDF | Zip Archive
5412 ESSDD244808P 24 48 8 130 lbs 2D PDF | Zip Archive
5412 ESSDD304210P 30 42 10 152 lbs 2D PDF | Zip Archive
5412 ESSDD304810P 30 48 10 168 lbs 2D PDF | Zip Archive
5412 ESSDD306010P 30 60 10 203 lbs 2D PDF | Zip Archive
5412 ESSDD364212P 36 42 12 220 lbs 2D PDF | Zip Archive
5412 ESSDD364812P 36 48 12 242 lbs 2D PDF | Zip Archive
5412 ESSDD366012P 36 60 12 292 lbs 2D PDF | Zip Archive
5412 ESSDD424212P 42 42 12 197 lbs 2D PDF | Zip Archive
5412 ESSDD424812P 42 48 12 216 lbs 2D PDF | Zip Archive
5412 ESSDD426012P 42 60 12 349 lbs 2D PDF | Zip Archive
5412 ESSDD484812P 48 48 12 225 lbs 2D PDF | Zip Archive
5412 ESSDD544208P 54 42 8 272 lbs 2D PDF | Zip Archive
5412 ESSDD244208PTH 24 42 8 117 lbs 2D PDF | Zip Archive
5412 ESSDD244210PTH 24 42 10 150 lbs 2D PDF | Zip Archive
5412 ESSDD244808PTH 24 48 8 130 lbs 2D PDF | Zip Archive
5412 ESSDD304210PTH 30 42 10 152 lbs 2D PDF | Zip Archive
5412 ESSDD304810PTH 30 48 10 168 lbs 2D PDF | Zip Archive
5412 ESSDD306010PTH 30 60 10 203 lbs 2D PDF | Zip Archive
5412 ESSDD364212PTH 36 42 12 220 lbs 2D PDF | Zip Archive
5412 ESSDD364812PTH 36 48 12 242 lbs 2D PDF | Zip Archive
5412 ESSDD366012PTH 36 60 12 292 lbs 2D PDF | Zip Archive
5412 ESSDD424212PTH 42 42 12 197 lbs 2D PDF | Zip Archive
5412 ESSDD424812PTH 42 48 12 216 lbs 2D PDF | Zip Archive
5412 ESSDD426012PTH 42 60 12 349 lbs 2D PDF | Zip Archive
5412 ESSDD484812PTH 48 48 12 225 lbs 2D PDF | Zip Archive
5412 ESSDD544208PTH 54 42 8 272 lbs 2D PDF | Zip Archive
