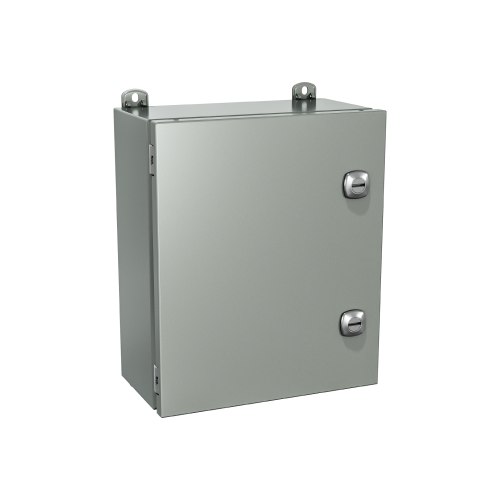

The 5412 ESM series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESM060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | Zip Archive |
| 5412 ESM060404 | 6 | 4 | 4 | 4 lbs | 2D PDF | Zip Archive |
| 5412 ESM060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | Zip Archive |
| 5412 ESM060605 | 6 | 6 | 5 | 6 lbs | 2D PDF | Zip Archive |
| 5412 ESM080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | Zip Archive |
| 5412 ESM080605 | 8 | 6 | 5 | 7 lbs | 2D PDF | Zip Archive |
| 5412 ESM080606 | 8 | 6 | 6 | 7 lbs | 2D PDF | Zip Archive |
| 5412 ESM080804 | 8 | 8 | 4 | 8 lbs | 2D PDF | Zip Archive |
| 5412 ESM081004 | 8 | 10 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESM100804 | 10 | 8 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESM100806 | 10 | 8 | 6 | 12 lbs | 2D PDF | Zip Archive |
| 5412 ESM101005 | 10 | 10 | 5 | 14 lbs | 2D PDF | Zip Archive |
| 5412 ESM101006 | 10 | 10 | 6 | 14 lbs | 2D PDF | Zip Archive |
| 5412 ESM101205 | 10 | 12 | 5 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESM120604 | 12 | 6 | 4 | 8 lbs | 2D PDF | Zip Archive |
| 5412 ESM121005 | 12 | 10 | 5 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESM121008 | 12 | 10 | 8 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESM121205 | 12 | 12 | 5 | 18 lbs | 2D PDF | Zip Archive |
| 5412 ESM121206 | 12 | 12 | 6 | 18 lbs | 2D PDF | Zip Archive |
| 5412 ESM121406 | 12 | 14 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESM140806 | 14 | 8 | 6 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESM141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESM141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | Zip Archive |
| 5412 ESM141606 | 14 | 16 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 5412 ESM161006 | 16 | 10 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESM161206 | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 5412 ESM161208 | 16 | 12 | 8 | 25 lbs | 2D PDF | Zip Archive |
| 5412 ESM161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 5412 ESM161408 | 16 | 14 | 8 | 26 lbs | 2D PDF | Zip Archive |
| 5412 ESM161410 | 16 | 14 | 10 | 27 lbs | 2D PDF | Zip Archive |
