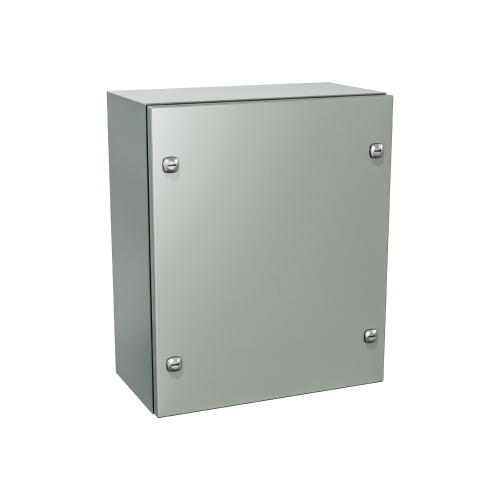

The 5412 ESQT series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESQT121206 | 12 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESQT122406 | 12 | 24 | 6 | 35 lbs | 2D PDF | Zip Archive |
| 5412 ESQT122408 | 12 | 24 | 8 | 38 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161206 | 16 | 12 | 6 | 24 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161208 | 16 | 12 | 8 | 27 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161210 | 16 | 12 | 10 | 30 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161606 | 16 | 16 | 6 | 31 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161608 | 16 | 16 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 5412 ESQT162006 | 16 | 20 | 6 | 37 lbs | 2D PDF | Zip Archive |
| 5412 ESQT162008 | 16 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201206 | 20 | 12 | 6 | 29 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201208 | 20 | 12 | 8 | 33 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201606 | 20 | 16 | 6 | 37 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201608 | 20 | 16 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201610 | 20 | 16 | 10 | 44 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201612 | 20 | 16 | 12 | 48 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202006 | 20 | 20 | 6 | 45 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202008 | 20 | 20 | 8 | 49 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202010 | 20 | 20 | 10 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202012 | 20 | 20 | 12 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202406 | 20 | 24 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202408 | 20 | 24 | 8 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202412 | 20 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241206 | 24 | 12 | 6 | 35 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241208 | 24 | 12 | 8 | 38 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241210 | 24 | 12 | 10 | 42 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241606 | 24 | 16 | 6 | 44 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241608 | 24 | 16 | 8 | 48 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242006 | 24 | 20 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242008 | 24 | 20 | 8 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242010 | 24 | 20 | 10 | 62 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242012 | 24 | 20 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242016 | 24 | 20 | 16 | 74 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242406 | 24 | 24 | 6 | 62 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242408 | 24 | 24 | 8 | 67 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242410 | 24 | 24 | 10 | 71 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242412 | 24 | 24 | 12 | 76 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242416 | 24 | 24 | 16 | 86 lbs | 2D PDF | Zip Archive |
| 5412 ESQT243008 | 24 | 30 | 8 | 81 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301208 | 30 | 12 | 8 | 46 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301606 | 30 | 16 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301608 | 30 | 16 | 8 | 58 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302006 | 30 | 20 | 6 | 65 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302008 | 30 | 20 | 8 | 70 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302010 | 30 | 20 | 10 | 74 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302406 | 30 | 24 | 6 | 76 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302408 | 30 | 24 | 8 | 81 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302410 | 30 | 24 | 10 | 86 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302412 | 30 | 24 | 12 | 92 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302416 | 30 | 24 | 16 | 102 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302420 | 30 | 24 | 20 | 113 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302424 | 30 | 24 | 24 | 123 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303008 | 30 | 30 | 8 | 98 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303012 | 30 | 30 | 12 | 110 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303608 | 30 | 36 | 8 | 116 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362406 | 36 | 24 | 6 | 90 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362408 | 36 | 24 | 8 | 95 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362410 | 36 | 24 | 10 | 101 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362412 | 36 | 24 | 12 | 107 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362416 | 36 | 24 | 16 | 119 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363006 | 36 | 30 | 6 | 109 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363008 | 36 | 30 | 8 | 116 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363010 | 36 | 30 | 10 | 122 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363012 | 36 | 30 | 12 | 129 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363016 | 36 | 30 | 16 | 142 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363020 | 36 | 30 | 20 | 155 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363608 | 36 | 36 | 8 | 136 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363612 | 36 | 36 | 12 | 150 lbs | 2D PDF | Zip Archive |
| 5412 ESQT422408 | 42 | 24 | 8 | 110 lbs | 2D PDF | Zip Archive |
| 5412 ESQT422412 | 42 | 24 | 12 | 118 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423008 | 42 | 30 | 8 | 133 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423010 | 42 | 30 | 10 | 140 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423012 | 42 | 30 | 12 | 147 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423608 | 42 | 36 | 8 | 156 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423610 | 42 | 36 | 10 | 164 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423612 | 42 | 36 | 12 | 172 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423616 | 42 | 36 | 16 | 187 lbs | 2D PDF | Zip Archive |
| 5412 ESQT482408 | 48 | 24 | 8 | 124 lbs | 2D PDF | Zip Archive |
| 5412 ESQT482412 | 48 | 24 | 12 | 138 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483008 | 48 | 30 | 8 | 150 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483010 | 48 | 30 | 10 | 158 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483608 | 48 | 36 | 8 | 177 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483610 | 48 | 36 | 10 | 185 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483612 | 48 | 36 | 12 | 193 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483616 | 48 | 36 | 16 | 210 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483620 | 48 | 36 | 20 | 226 lbs | 2D PDF | Zip Archive |
| 5412 ESQT602412 | 60 | 24 | 12 | 169 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603608 | 60 | 36 | 8 | 218 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603610 | 60 | 36 | 10 | 227 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603612 | 60 | 36 | 12 | 236 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603616 | 60 | 36 | 16 | 255 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603620 | 60 | 36 | 20 | 274 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723012 | 72 | 30 | 12 | 240 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723016 | 72 | 30 | 16 | 260 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723020 | 72 | 30 | 20 | 280 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723024 | 72 | 30 | 24 | 300 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723612 | 72 | 36 | 12 | 279 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723616 | 72 | 36 | 16 | 301 lbs | 2D PDF | Zip Archive |
| 5412 ESQT121206TH | 12 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESQT122406TH | 12 | 24 | 6 | 35 lbs | 2D PDF | Zip Archive |
| 5412 ESQT122408TH | 12 | 24 | 8 | 38 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161206TH | 16 | 12 | 6 | 24 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161208TH | 16 | 12 | 8 | 27 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161210TH | 16 | 12 | 10 | 30 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161606TH | 16 | 16 | 6 | 31 lbs | 2D PDF | Zip Archive |
| 5412 ESQT161608TH | 16 | 16 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 5412 ESQT162006TH | 16 | 20 | 6 | 37 lbs | 2D PDF | Zip Archive |
| 5412 ESQT162008TH | 16 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201206TH | 20 | 12 | 6 | 29 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201208TH | 20 | 12 | 8 | 33 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201606TH | 20 | 16 | 6 | 37 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201608TH | 20 | 16 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201610TH | 20 | 16 | 10 | 44 lbs | 2D PDF | Zip Archive |
| 5412 ESQT201612TH | 20 | 16 | 12 | 48 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202006TH | 20 | 20 | 6 | 45 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202008TH | 20 | 20 | 8 | 49 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202010TH | 20 | 20 | 10 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202012TH | 20 | 20 | 12 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202406TH | 20 | 24 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202408TH | 20 | 24 | 8 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT202412TH | 20 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241206TH | 24 | 12 | 6 | 35 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241208TH | 24 | 12 | 8 | 38 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241210TH | 24 | 12 | 10 | 42 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241606TH | 24 | 16 | 6 | 44 lbs | 2D PDF | Zip Archive |
| 5412 ESQT241608TH | 24 | 16 | 8 | 48 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242006TH | 24 | 20 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242008TH | 24 | 20 | 8 | 57 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242010TH | 24 | 20 | 10 | 62 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242012TH | 24 | 20 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242016TH | 24 | 20 | 16 | 74 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242406TH | 24 | 24 | 6 | 62 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242408TH | 24 | 24 | 8 | 67 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242410TH | 24 | 24 | 10 | 71 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242412TH | 24 | 24 | 12 | 76 lbs | 2D PDF | Zip Archive |
| 5412 ESQT242416TH | 24 | 24 | 16 | 86 lbs | 2D PDF | Zip Archive |
| 5412 ESQT243008TH | 24 | 30 | 8 | 81 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301208TH | 30 | 12 | 8 | 46 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301606TH | 30 | 16 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 5412 ESQT301608TH | 30 | 16 | 8 | 58 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302006TH | 30 | 20 | 6 | 65 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302008TH | 30 | 20 | 8 | 70 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302010TH | 30 | 20 | 10 | 74 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302406TH | 30 | 24 | 6 | 76 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302408TH | 30 | 24 | 8 | 81 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302410TH | 30 | 24 | 10 | 86 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302412TH | 30 | 24 | 12 | 92 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302416TH | 30 | 24 | 16 | 102 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302420TH | 30 | 24 | 20 | 113 lbs | 2D PDF | Zip Archive |
| 5412 ESQT302424TH | 30 | 24 | 24 | 123 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303008TH | 30 | 30 | 8 | 98 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303012TH | 30 | 30 | 12 | 110 lbs | 2D PDF | Zip Archive |
| 5412 ESQT303608TH | 30 | 36 | 8 | 116 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362406TH | 36 | 24 | 6 | 90 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362408TH | 36 | 24 | 8 | 95 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362410TH | 36 | 24 | 10 | 101 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362412TH | 36 | 24 | 12 | 107 lbs | 2D PDF | Zip Archive |
| 5412 ESQT362416TH | 36 | 24 | 16 | 119 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363006TH | 36 | 30 | 6 | 109 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363008TH | 36 | 30 | 8 | 116 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363010TH | 36 | 30 | 10 | 122 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363012TH | 36 | 30 | 12 | 129 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363016TH | 36 | 30 | 16 | 142 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363020TH | 36 | 30 | 20 | 155 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363608TH | 36 | 36 | 8 | 136 lbs | 2D PDF | Zip Archive |
| 5412 ESQT363612TH | 36 | 36 | 12 | 150 lbs | 2D PDF | Zip Archive |
| 5412 ESQT422408TH | 42 | 24 | 8 | 110 lbs | 2D PDF | Zip Archive |
| 5412 ESQT422412TH | 42 | 24 | 12 | 118 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423008TH | 42 | 30 | 8 | 133 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423010TH | 42 | 30 | 10 | 140 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423012TH | 42 | 30 | 12 | 147 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423608TH | 42 | 36 | 8 | 156 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423610TH | 42 | 36 | 10 | 164 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423612TH | 42 | 36 | 12 | 172 lbs | 2D PDF | Zip Archive |
| 5412 ESQT423616TH | 42 | 36 | 16 | 187 lbs | 2D PDF | Zip Archive |
| 5412 ESQT482408TH | 48 | 24 | 8 | 124 lbs | 2D PDF | Zip Archive |
| 5412 ESQT482412TH | 48 | 24 | 12 | 138 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483008TH | 48 | 30 | 8 | 150 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483010TH | 48 | 30 | 10 | 158 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483608TH | 48 | 36 | 8 | 177 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483610TH | 48 | 36 | 10 | 185 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483612TH | 48 | 36 | 12 | 193 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483616TH | 48 | 36 | 16 | 210 lbs | 2D PDF | Zip Archive |
| 5412 ESQT483620TH | 48 | 36 | 20 | 226 lbs | 2D PDF | Zip Archive |
| 5412 ESQT602412TH | 60 | 24 | 12 | 169 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603608TH | 60 | 36 | 8 | 218 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603610TH | 60 | 36 | 10 | 227 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603612TH | 60 | 36 | 12 | 236 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603616TH | 60 | 36 | 16 | 255 lbs | 2D PDF | Zip Archive |
| 5412 ESQT603620TH | 60 | 36 | 20 | 274 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723012TH | 72 | 30 | 12 | 240 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723016TH | 72 | 30 | 16 | 260 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723020TH | 72 | 30 | 20 | 280 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723024TH | 72 | 30 | 24 | 300 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723612TH | 72 | 36 | 12 | 279 lbs | 2D PDF | Zip Archive |
| 5412 ESQT723616TH | 72 | 36 | 16 | 301 lbs | 2D PDF | Zip Archive |
Copyright © EXM Manufacturing 1975 – 2024. All Rights Reserved
