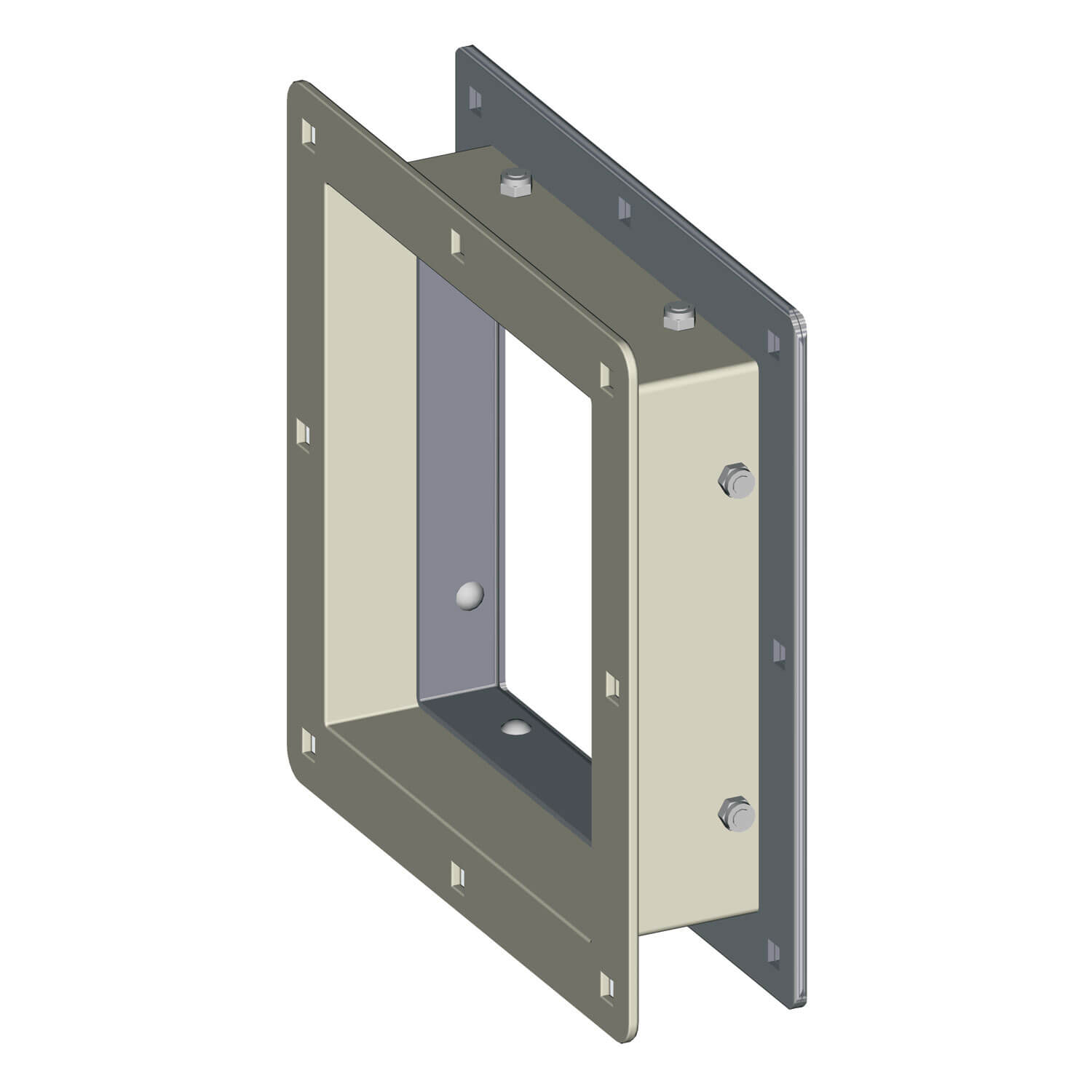

The 1412 series is a complete water tight wireway system, which is used indoor or outdoors, in areas where the wireway may be subjected to hosing or water coming from any direction. The troughs are Bolt-on and are made of high quality code gauge steel, with welded end flanges. All seams have been continuously welded. Covers are hinged and secure closing is assured by several, quick-release, ¼ turn locks. A high quality, poured-in-place, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. Components are finished with heat fused powder paint, electro-statically applied on a pretreated base. Finish is ANSI/ASA 61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 NS8003 | 8 | 8 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS4002 | 4 | 4 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS4003 | 4 | 4 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS6001 | 6 | 6 | N/A | 2D PDF | 3D File | |
| 1412 NS6002 | 6 | 6 | N/A | 2D PDF | 3D File | |
| 1412 NS6003 | 6 | 6 | N/A | 2D PDF | 3D File | |
| 1412 NS8001 | 8 | 8 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS8002 | 8 | 8 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS2001 | 2.5 | 2.5 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS2002 | 2.5 | 2.5 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS2003 | 2.5 | 2.5 | N/A | N/A | 2D PDF | 3D File |
| 1412 NS4001 | 4 | 4 | N/A | N/A | 2D PDF | 3D File |
