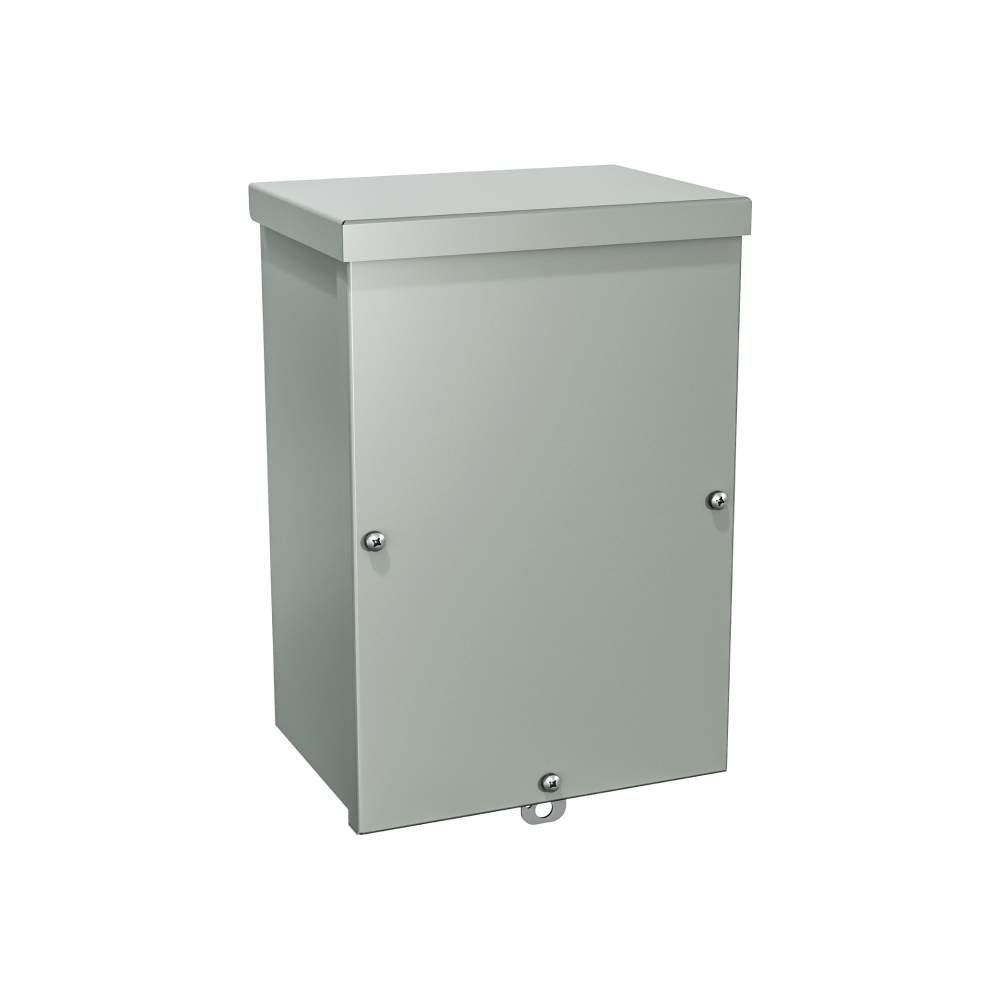

The 1300 are used as junction boxes in outdoor installations, or indoors where dripping water is a problem. These enclosures are designed to protect equipment against rain, sleet and snow. Enclosures are either made of high quality 16 GA steel with a primer applied prior to the application of heat fused powder paint or made from galvanized steel material. The top of the enclosure serves as a drip shield. The cover slips on and is fastened by screws. Four internal mounting holes are provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 3R / IP32
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1300 060603 | 6 | 6 | 3 | 3 lbs | 2D PDF | 3D File |
| 1300 060604 | 6 | 6 | 4 | 4 lbs | 2D PDF | 3D File |
| 1300 080604 | 8 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 1300 080804 | 8 | 8 | 4 | 6 lbs | 2D PDF | 3D File |
| 1300 080806 | 8 | 8 | 6 | 7 lbs | 2D PDF | 3D File |
| 1300 100804 | 10 | 8 | 4 | 7 lbs | 2D PDF | 3D File |
| 1300 100806 | 10 | 8 | 6 | 8 lbs | 2D PDF | 3D File |
| 1300 101004 | 10 | 10 | 4 | 8 lbs | 2D PDF | 3D File |
| 1300 101006 | 10 | 10 | 6 | 9 lbs | 2D PDF | 3D File |
| 1300 120804 | 12 | 8 | 4 | 7 lbs | 2D PDF | 3D File |
| 1300 120806 | 12 | 8 | 6 | 9 lbs | 2D PDF | 3D File |
| 1300 121006 | 12 | 10 | 6 | 10 lbs | 2D PDF | 3D File |
| 1300 121204 | 12 | 12 | 4 | 10 lbs | 2D PDF | 3D File |
| 1300 121206 | 12 | 12 | 6 | 12 lbs | 2D PDF | 3D File |
| 1300 151204 | 15 | 12 | 4 | 12 lbs | 2D PDF | 3D File |
| 1300 151206 | 15 | 12 | 6 | 14 lbs | 2D PDF | 3D File |
| 1300 181206 | 18 | 12 | 6 | 16 lbs | 2D PDF | 3D File |
| 1300 181506 | 18 | 15 | 6 | 22 lbs | 2D PDF | 3D File |
| 1300 181806 | 18 | 18 | 6 | 24 lbs | 2D PDF | 3D File |
| 1300 241806 | 24 | 18 | 6 | 31 lbs | 2D PDF | 3D File |
