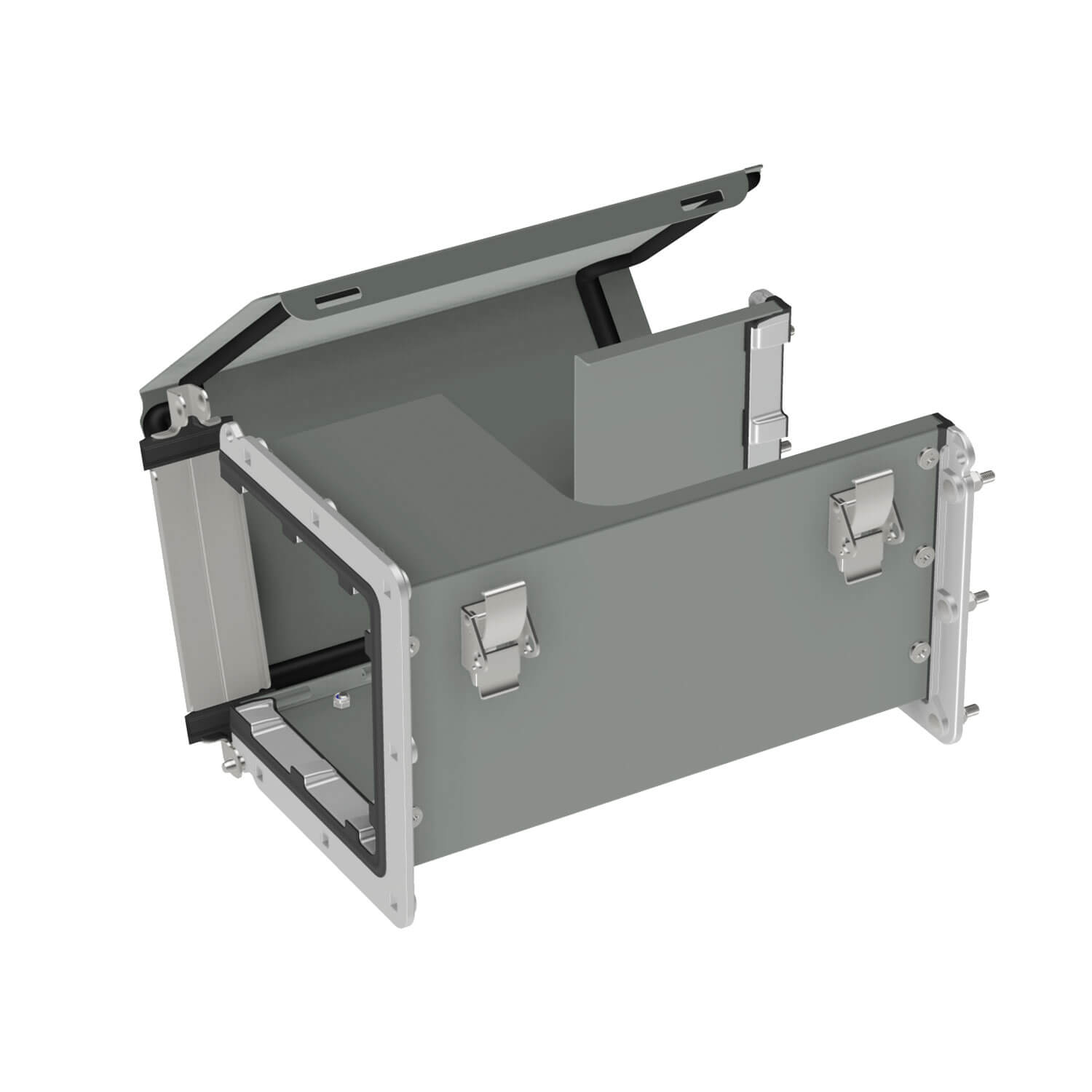

Type 12, 13 - Transposition clockwise 12° section

Wireway

1500 WS

JoinersMiscellaneous Fittings

Dimension (inch height x width x depth)

The 1500 WS transposition counterclockwise section for 1500 series lay-in ducts are used indoors for protection against dirt, dust and oil.

Made of high quality code gauge steel.
The cover is secured by pull-down padlockable hasps.
Sections are finished with heat fused powder paint, electro-statically applied on a pretreated base.
Paint color : ANSI 61 smooth gray.
CSA Certified.
UL Listed.
NEMA / EEMAC 12-13.
IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
1500 WS2074		2.5	2.5	N/A	2D PDF \|
1500 WS4074		4	4	N/A	2D PDF \|
1500 WS6074		6	6	N/A	2D PDF \|
1500 WS8074		8	8	N/A	2D PDF \|

No 3D model available.
