Type 12, 13 | Pedestal

1500 PE

IP 54NEMA 12, 13Mild Steel painted ASA 61 Gray

Dimension (inch height x width x depth)

Remove From Saved List

BoxCad

Customize it here

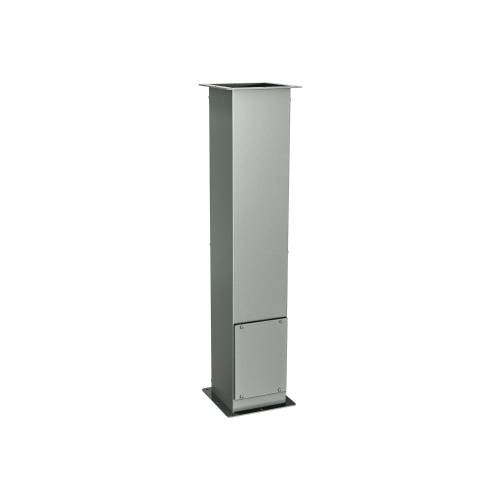

The 1500 PE series is used to floor mount 1500 CS/CSD/CSE consolets or other types of enclosures.

Made of high quality steel, with continuously welded corner seams.
Inside flanges and sealing gaskets are provided.
Wiring can be pulled through the pedestal.
Enclosure and base mounting holes are provided.
Paint color: ANSI 61 smooth gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
1500 PE060635	6	6	35	24 lbs	2D PDF \| Zip Archive
1500 PE040435	4	4	35	18 lbs	2D PDF \| Zip Archive

No 3D model available.
