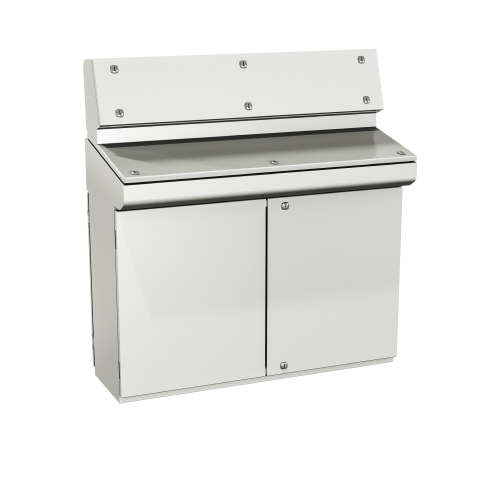

Type 12, 13 | Double door monobloc console with dual access, assembled with turret

Consoles

6500 COTUDDA

IP 54NEMA 12, 13Mild Steel painted RAL7035Double DoorDual Access

Dimension (inch height x width x depth)

The 6500 COTUDDA series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

For more information, see 6500 CODD and 6500 COTU.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 COTUDDA1004		1,000	400	265 lbs	2D PDF \| 3D File
6500 COTUDDA1204		1,200	400	309 lbs	2D PDF \| 3D File

No 3D model available.
