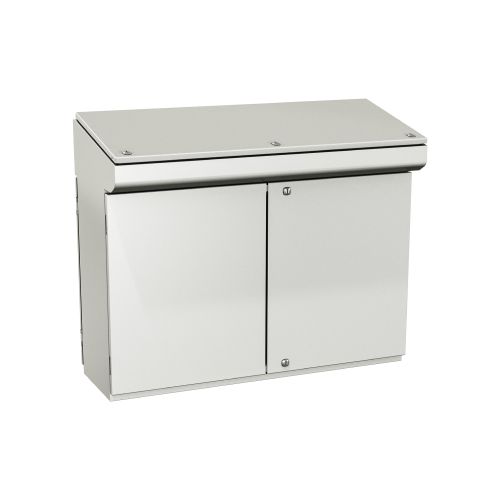

Type 12, 13 | Double door monobloc console with dual access

Consoles

6500 CODD

IP 54NEMA 12, 13Mild Steel painted RAL7035Double DoorDual Access

Dimension (inch height x width x depth)

The 6500 CODD series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The covers are secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
Mounting holes are provided on the underside of the enclosure.
The body’s construction is designed to prevent dripping water from entering the enclosure.
The enclosure is supplied with two gas springs installed on the top door.
The depth of the interior panel is adjustable.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 CODD1004		40	16	175 lbs	2D PDF \| 3D File
6500 CODD1204		47	16	199 lbs	2D PDF \| 3D File

No 3D model available.
