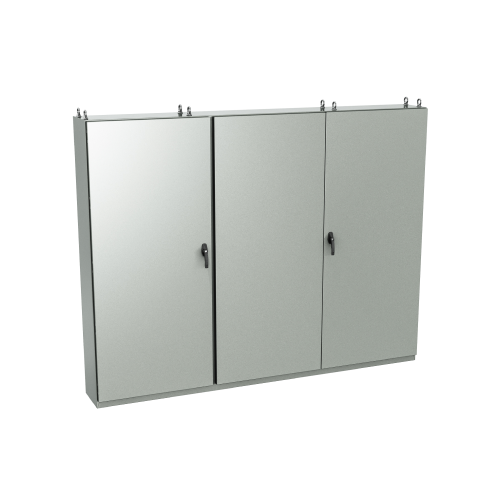

Type 12, 13 | 3 doors cabinet with padlockable 3 point lock mechanism

Free-Standing

5500 MD3

IP 54NEMA 12, 13Mild Steel painted ASA 61 GrayLine up

Dimension (inch height x width x depth)

The 5500 MD3 series is used to protect equipment against oil, dust, dirt and water infiltration.

Made of high quality steel, with continuously welded corner seams.
The doors are secured by padlockable 3 point lock mechanisms.
A system prevents the opening of the secondary doors when the master door (right) is closed.
A robotically poured-in-place seamless gasket ensures a durable seal.
The cabinet has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Lifting eyebolts are provided.
A strut channel is installed on the top face of the enclosure to mount lighting accessories.
Paint color: ANSI 61 smooth gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
5500 MD3-20	86	112	20	2640 lbs	2D PDF \| Zip Archive
