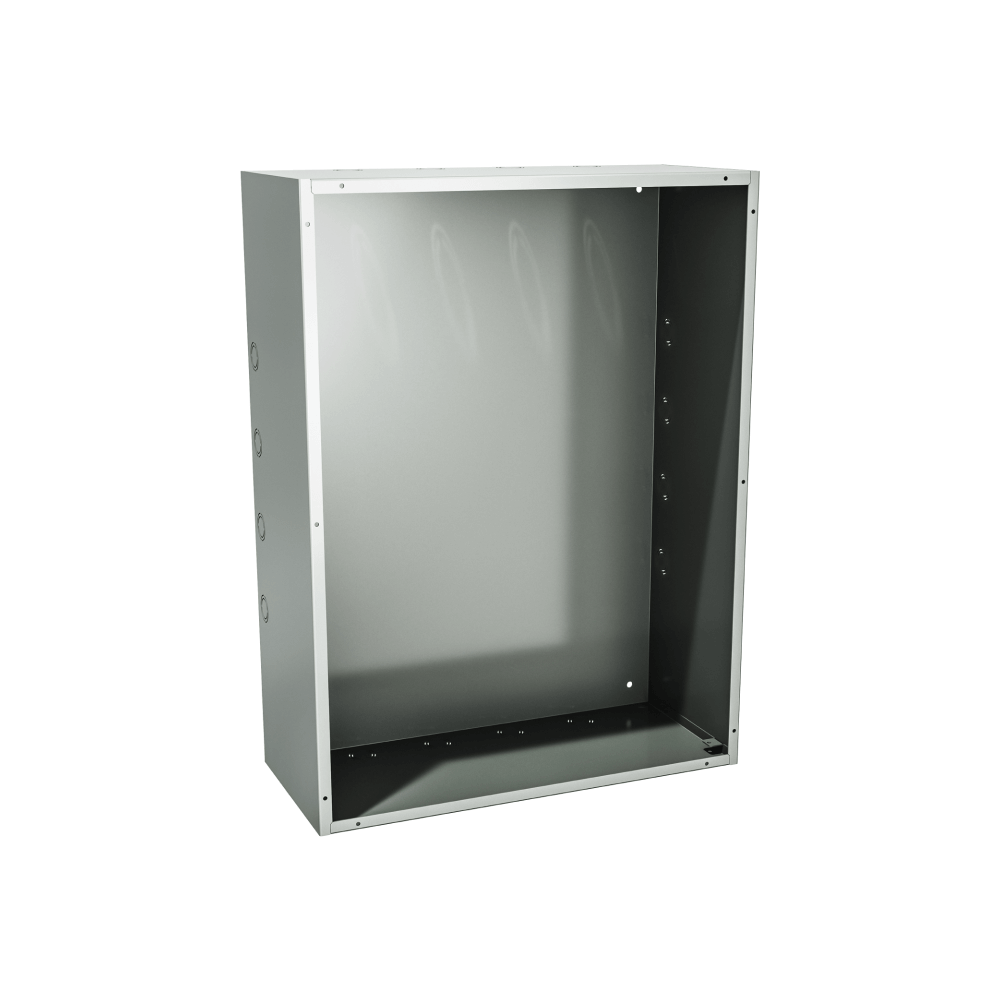

The 1100 TC are specifically designed for telephone equipment. They are made of high quality 16 GA or 14 GA steel and three different covers can be attached to the main body. If the installation requires a hinged flush mounted enclosure, then one body (1100 TC) and one cover (1100 HCF or 1100 HCFW) must be ordered. For a hinged, surface-mounted enclosure, one body (1100 TC) and one cover (1100 HCS or 1100 HCSW) must be ordered. If a screw cover is required, one body (1100 TC) and one screw cover (1100 FCD) must be ordered. The hinged covers are provided with a bolt-on hinge and are closed with a ¼ turn key lock, which ensures a positive door to box contact. Knockouts are provided and a wooden back is available upon request. Boxes and covers are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base.
CSA Certified / UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 TC121204 | 12 | 12 | 4 | 7 lbs | 2D PDF | 3D File |
| 1100 TC121206 | 12 | 12 | 6 | 11 lbs | 2D PDF | 3D File |
| 1100 TC121208 | 12 | 12 | 8 | 14 lbs | 2D PDF | 3D File |
| 1100 TC181204 | 18 | 12 | 4 | 10 lbs | 2D PDF | 3D File |
| 1100 TC181206 | 18 | 12 | 6 | 13 lbs | 2D PDF | 3D File |
| 1100 TC181208 | 18 | 12 | 8 | 18 lbs | 2D PDF | 3D File |
| 1100 TC181804 | 18 | 18 | 4 | 12 lbs | 2D PDF | 3D File |
| 1100 TC181806 | 18 | 18 | 6 | 17 lbs | 2D PDF | 3D File |
| 1100 TC181808 | 18 | 18 | 8 | 21 lbs | 2D PDF | 3D File |
| 1100 TC241804 | 24 | 18 | 4 | 15 lbs | 2D PDF | 3D File |
| 1100 TC241806 | 24 | 18 | 6 | 20 lbs | 2D PDF | 3D File |
| 1100 TC241808 | 24 | 18 | 8 | 25 lbs | 2D PDF | 3D File |
| 1100 TC242404 | 24 | 24 | 4 | 19 lbs | 2D PDF | 3D File |
| 1100 TC242406 | 24 | 24 | 6 | 24 lbs | 2D PDF | 3D File |
| 1100 TC242408 | 24 | 24 | 8 | 30 lbs | 2D PDF | 3D File |
| 1100 TC302404 | 30 | 24 | 4 | 22 lbs | 2D PDF | 3D File |
| 1100 TC302406 | 30 | 24 | 6 | 28 lbs | 2D PDF | 3D File |
| 1100 TC302408 | 30 | 24 | 8 | 34 lbs | 2D PDF | 3D File |
| 1100 TC303004 | 30 | 30 | 4 | 27 lbs | 2D PDF | 3D File |
| 1100 TC303006 | 30 | 30 | 6 | 33 lbs | 2D PDF | 3D File |
| 1100 TC303008 | 30 | 30 | 8 | 39 lbs | 2D PDF | 3D File |
| 1100 TC362404 | 36 | 24 | 4 | 26 lbs | 2D PDF | 3D File |
| 1100 TC362406 | 36 | 24 | 6 | 32 lbs | 2D PDF | 3D File |
| 1100 TC362408 | 36 | 24 | 8 | 38 lbs | 2D PDF | 3D File |
| 1100 TC363004 | 36 | 30 | 4 | 31 lbs | 2D PDF | 3D File |
| 1100 TC363006 | 36 | 30 | 6 | 37 lbs | 2D PDF | 3D File |
| 1100 TC363008 | 36 | 30 | 8 | 44 lbs | 2D PDF | 3D File |
| 1100 TC363604 | 36 | 36 | 4 | 36 lbs | 2D PDF | 3D File |
| 1100 TC363606 | 36 | 36 | 6 | 43 lbs | 2D PDF | 3D File |
| 1100 TC363608 | 36 | 36 | 8 | 50 lbs | 2D PDF | 3D File |
| 1100 TC483004 | 48 | 30 | 4 | 39 lbs | 2D PDF | 3D File |
| 1100 TC483006 | 48 | 30 | 6 | 47 lbs | 2D PDF | 3D File |
| 1100 TC483008 | 48 | 30 | 8 | 54 lbs | 2D PDF | 3D File |
| 1100 TC483604 | 48 | 36 | 4 | 45 lbs | 2D PDF | 3D File |
| 1100 TC483606 | 48 | 36 | 6 | 53 lbs | 2D PDF | 3D File |
| 1100 TC483608 | 48 | 36 | 8 | 61 lbs | 2D PDF | 3D File |
| 1100 TC484804 | 48 | 48 | 4 | 58 lbs | 2D PDF | 3D File |
| 1100 TC484806 | 48 | 48 | 6 | 66 lbs | 2D PDF | 3D File |
| 1100 TC484808 | 48 | 48 | 8 | 76 lbs | 2D PDF | 3D File |
