Wireway

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

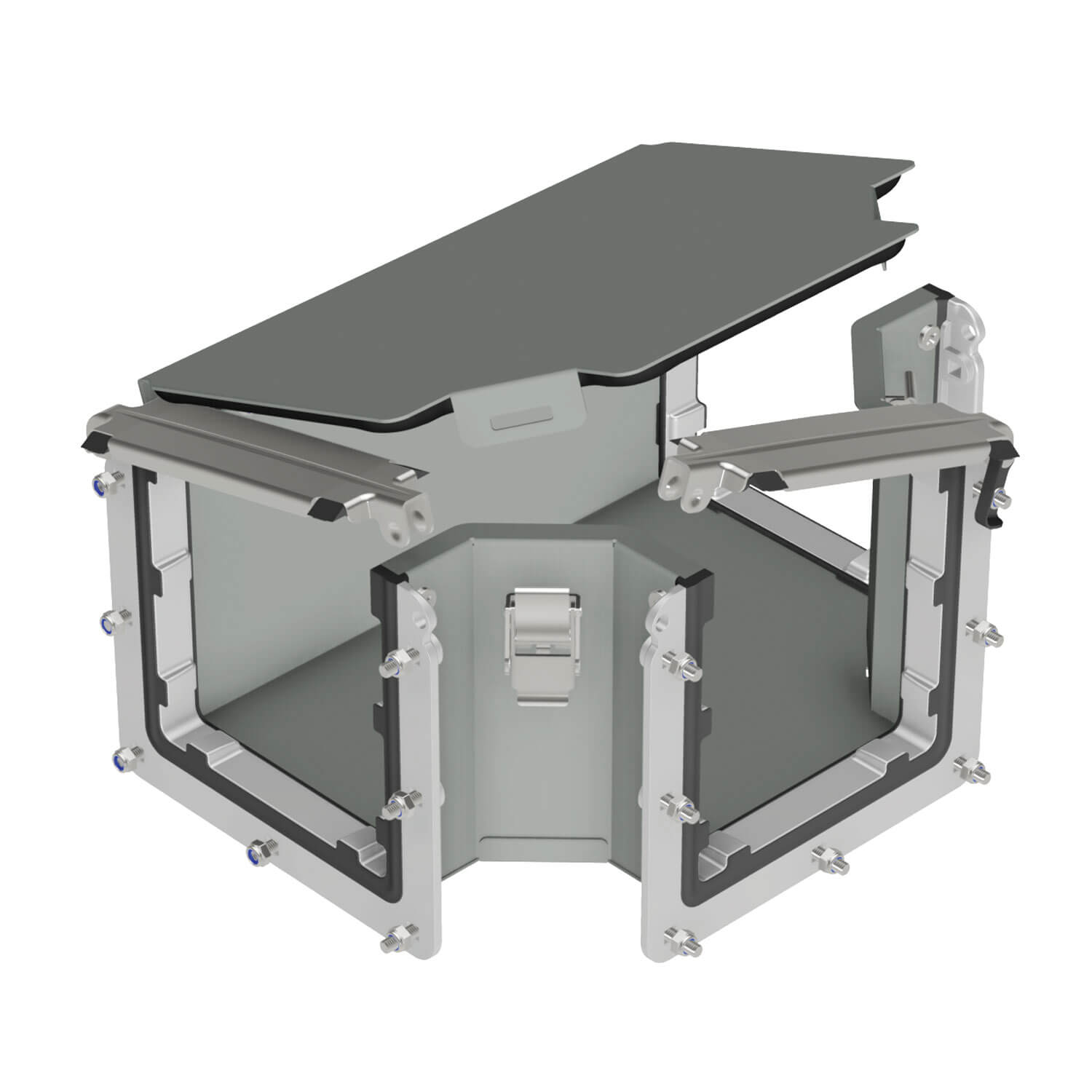

Type 1 – Tee fitting top opening

1500 TT
JoinersMiscellaneous Fittings
Added to Saved List

See your favorite product on Saved List

The re-designed 1500 series water tight lay-in wireway is a complete system that permits fast and easy installation of multiple wire runs. Each section and accessory include one side completely opened to allow lay-in of wires instead of being restricted to pull through. The wireways are made high quality 14 GA steel complete with bolted flanges. The covers are hinged and several quick release draw pull latches assure a tight closing. A high quality, poured-in-place, seamless gasket is present on the covers. The enhanced flange construction now integrates a gasket embedded directly onto the flange itself. Components are finished with heat fused powder paint, electro-statically applied on a pretreated base. Finish is ANSI/ASA61 smooth gray.

CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66

  • Made of high quality gauge steel.
  • The cover is secured with padlockable hasps.
  • Finished with electro-statically applied powder paint over a pre-treated base.
  • Paint color: ANSI 61 gray.
  • CSA certified.
  • UL listed.
  • NEMA / EEMAC 12, 13.
  • IP55.
Catalog Number Dimensions Ship Weight Downloads
A B C
1500 TT8063 8 8 7 N/A 2D PDF | 3D File
1500 TT4063 4 4 5 N/A 2D PDF | 3D File
1500 TT6063 6 6 6 N/A 2D PDF | 3D File
1500 TT2063 2,5 2,5 4,25 N/A 2D PDF | 3D File
No 3D model available.
