Pull & Junction Boxes

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

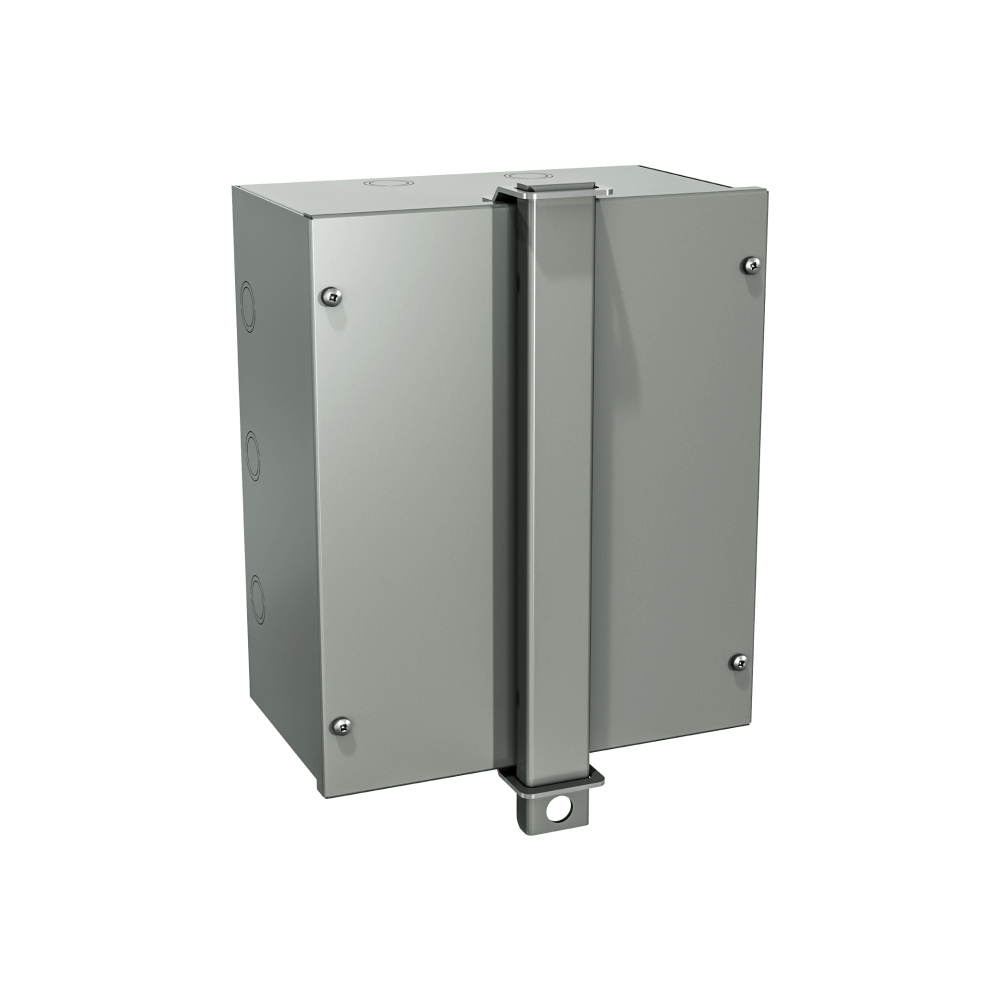

Type 1 | Junction box with cover secured by screws and padlock provision

1100 DFP
IP 20NEMA 1Mild Steel painted ASA 61 GrayScrew Cover
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close
BoxCad Customize it here

The 1100 DFP series is used where the equipment does not require a high level of protection.

  • Made of high quality steel.
  • The cover is secured by screws.
  • Mounting holes are provided on the back face of the enclosure.
  • Paint color: ANSI 61 smooth gray.
  • CSA certified.
  • NEMA 1.
  • IEC 60529 IP30.
Catalog Number Dimensions Ship Weight Downloads
A B C
1100 DFP040404 4 4 4 1 lbs 2D PDF | Zip Archive
1100 DFP060404 6 4 4 2 lbs 2D PDF | Zip Archive
1100 DFP060603 6 6 3 2 lbs 2D PDF | Zip Archive
1100 DFP060604 6 6 4 3 lbs 2D PDF | Zip Archive
1100 DFP060606 6 6 6 3 lbs 2D PDF | Zip Archive
1100 DFP080604 8 6 4 3 lbs 2D PDF | Zip Archive
1100 DFP080606 8 6 6 5 lbs 2D PDF | Zip Archive
1100 DFP080804 8 8 4 4 lbs 2D PDF | Zip Archive
1100 DFP080806 8 8 6 5 lbs 2D PDF | Zip Archive
1100 DFP100606 10 6 6 5 lbs 2D PDF | Zip Archive
1100 DFP100804 10 8 4 5 lbs 2D PDF | Zip Archive
1100 DFP100806 10 8 6 6 lbs 2D PDF | Zip Archive
1100 DFP101004 10 10 4 6 lbs 2D PDF | Zip Archive
1100 DFP101006 10 10 6 7 lbs 2D PDF | Zip Archive
1100 DFP101008 10 10 8 9 lbs 2D PDF | Zip Archive
1100 DFP120604 12 6 4 5 lbs 2D PDF | Zip Archive
1100 DFP120606 12 6 6 6 lbs 2D PDF | Zip Archive
1100 DFP120804 12 8 4 6 lbs 2D PDF | Zip Archive
1100 DFP120806 12 8 6 7 lbs 2D PDF | Zip Archive
1100 DFP121004 12 10 4 7 lbs 2D PDF | Zip Archive
1100 DFP121006 12 10 6 9 lbs 2D PDF | Zip Archive
1100 DFP121204 12 12 4 8 lbs 2D PDF | Zip Archive
1100 DFP121206 12 12 6 10 lbs 2D PDF | Zip Archive
1100 DFP121208 12 12 8 12 lbs 2D PDF | Zip Archive
1100 DFP151204 15 12 4 10 lbs 2D PDF | Zip Archive
1100 DFP151206 15 12 6 11 lbs 2D PDF | Zip Archive
1100 DFP151208 15 12 8 13 lbs 2D PDF | Zip Archive
1100 DFP151506 15 15 6 13 lbs 2D PDF | Zip Archive
1100 DFP151504 15 15 4 13 lbs 2D PDF | Zip Archive
1100 DFP161604 16 16 4 13 lbs 2D PDF | Zip Archive
1100 DFP161606 16 16 6 14 lbs 2D PDF | Zip Archive
1100 DFP161608 16 16 8 14 lbs 2D PDF | Zip Archive
1100 DFP180808 18 8 8 17 lbs 2D PDF | Zip Archive
1100 DFP181204 18 12 4 11 lbs 2D PDF | Zip Archive
1100 DFP181206 18 12 6 13 lbs 2D PDF | Zip Archive
1100 DFP181504 18 15 4 14 lbs 2D PDF | Zip Archive
1100 DFP181506 18 15 6 15 lbs 2D PDF | Zip Archive
1100 DFP181804 18 18 4 16 lbs 2D PDF | Zip Archive
1100 DFP181806 18 18 6 17 lbs 2D PDF | Zip Archive
1100 DFP181808 18 18 8 21 lbs 2D PDF | Zip Archive
1100 DFP241208 24 12 8 20 lbs 2D PDF | Zip Archive
1100 DFP241806 24 18 6 27 lbs 2D PDF | Zip Archive
1100 DFP242404 24 24 4 31 lbs 2D PDF | Zip Archive
1100 DFP242406 24 24 6 34 lbs 2D PDF | Zip Archive
1100 DFP242408 24 24 8 38 lbs 2D PDF | Zip Archive
1100 DFP080804N 8 8 4 4 lbs 2D PDF | Zip Archive
1100 DFP040404N 4 4 4 1 lbs 2D PDF | Zip Archive
1100 DFP060404N 6 4 4 2 lbs 2D PDF | Zip Archive
1100 DFP060603N 6 6 3 2 lbs 2D PDF | Zip Archive
1100 DFP060604N 6 6 4 3 lbs 2D PDF | Zip Archive
1100 DFP060606N 6 6 6 3 lbs 2D PDF | Zip Archive
1100 DFP080604N 8 6 4 3 lbs 2D PDF | Zip Archive
1100 DFP080606N 8 6 6 5 lbs 2D PDF | Zip Archive
1100 DFP080806N 8 8 6 5 lbs 2D PDF | Zip Archive
1100 DFP100606N 10 6 6 5 lbs 2D PDF | Zip Archive
1100 DFP100804N 10 8 4 5 lbs 2D PDF | Zip Archive
1100 DFP100806N 10 8 6 6 lbs 2D PDF | Zip Archive
1100 DFP101004N 10 10 4 6 lbs 2D PDF | Zip Archive
1100 DFP101006N 10 10 6 7 lbs 2D PDF | Zip Archive
1100 DFP101008N 10 10 8 10 lbs 2D PDF | Zip Archive
1100 DFP120604N 12 6 4 5 lbs 2D PDF | Zip Archive
1100 DFP120606N 12 6 6 6 lbs 2D PDF | Zip Archive
1100 DFP120804N 12 8 4 6 lbs 2D PDF | Zip Archive
1100 DFP120806N 12 8 6 7 lbs 2D PDF | Zip Archive
1100 DFP121004N 12 10 4 7 lbs 2D PDF | Zip Archive
1100 DFP121006N 12 10 6 9 lbs 2D PDF | Zip Archive
1100 DFP121204N 12 12 4 8 lbs 2D PDF | Zip Archive
1100 DFP121206N 12 12 6 10 lbs 2D PDF | Zip Archive
1100 DFP121208N 12 12 8 12 lbs 2D PDF | Zip Archive
1100 DFP121210N 12 12 10 18 lbs 2D PDF | Zip Archive
1100 DFP121212N 12 12 12 20 lbs 2D PDF | Zip Archive
1100 DFP151204N 15 12 4 10 lbs 2D PDF | Zip Archive
1100 DFP151206N 15 12 6 11 lbs 2D PDF | Zip Archive
1100 DFP151208N 15 12 8 13 lbs 2D PDF | Zip Archive
1100 DFP151504N 15 15 4 12 lbs 2D PDF | Zip Archive
1100 DFP151506N 15 15 6 13 lbs 2D PDF | Zip Archive
1100 DFP151508N 15 15 8 14 lbs 2D PDF | Zip Archive
1100 DFP151510N 15 15 10 22 lbs 2D PDF | Zip Archive
1100 DFP151512N 15 15 12 24 lbs 2D PDF | Zip Archive
1100 DFP161604N 16 16 4 13 lbs 2D PDF | Zip Archive
1100 DFP161606N 16 16 6 14 lbs 2D PDF | Zip Archive
1100 DFP161608N 16 16 8 15 lbs 2D PDF | Zip Archive
1100 DFP181204N 18 12 4 11 lbs 2D PDF | Zip Archive
1100 DFP181206N 18 12 6 13 lbs 2D PDF | Zip Archive
1100 DFP181212N 18 12 12 23 lbs 2D PDF | Zip Archive
1100 DFP181504N 18 15 4 14 lbs 2D PDF | Zip Archive
1100 DFP181506N 18 15 6 15 lbs 2D PDF | Zip Archive
1100 DFP181804N 18 18 4 16 lbs 2D PDF | Zip Archive
1100 DFP181806N 18 18 6 17 lbs 2D PDF | Zip Archive
1100 DFP181808N 18 18 8 20 lbs 2D PDF | Zip Archive
1100 DFP181810N 18 18 10 28 lbs 2D PDF | Zip Archive
1100 DFP181812N 18 18 12 26 lbs 2D PDF | Zip Archive
1100 DFP202010N 20 20 10 32 lbs 2D PDF | Zip Archive
1100 DFP241208N 24 12 8 20 lbs 2D PDF | Zip Archive
1100 DFP241806N 24 18 6 27 lbs 2D PDF | Zip Archive
1100 DFP241808N 24 18 8 28 lbs 2D PDF | Zip Archive
1100 DFP241810N 24 18 10 36 lbs 2D PDF | Zip Archive
1100 DFP242406N 24 24 6 34 lbs 2D PDF | Zip Archive
1100 DFP242408N 24 24 8 38 lbs 2D PDF | Zip Archive
1100 DFP242410N 24 24 10 41 lbs 2D PDF | Zip Archive
1100 DFP242412N 24 24 12 49 lbs 2D PDF | Zip Archive
1100 DFP301812N 30 18 12 45 lbs 2D PDF | Zip Archive
1100 DFP302010N 30 20 10 44 lbs 2D PDF | Zip Archive
1100 DFP302406N 30 24 6 42 lbs 2D PDF | Zip Archive
1100 DFP302410N 30 24 10 50 lbs 2D PDF | Zip Archive
1100 DFP302412N 30 24 12 51 lbs 2D PDF | Zip Archive
1100 DFP303008N 30 30 8 48 lbs 2D PDF | Zip Archive
1100 DFP303010N 30 30 10 60 lbs 2D PDF | Zip Archive
1100 DFP303012N 30 30 12 54 lbs 2D PDF | Zip Archive
1100 DFP362406N 36 24 6 48 lbs 2D PDF | Zip Archive
1100 DFP362408N 36 24 8 55 lbs 2D PDF | Zip Archive
1100 DFP362410N 36 24 10 59 lbs 2D PDF | Zip Archive
1100 DFP362412N 36 24 12 57 lbs 2D PDF | Zip Archive
1100 DFP363008N 36 30 8 55 lbs 2D PDF | Zip Archive
1100 DFP363010N 36 30 10 61 lbs 2D PDF | Zip Archive
1100 DFP363012N 36 30 12 65 lbs 2D PDF | Zip Archive
1100 DFP363606N 36 36 6 60 lbs 2D PDF | Zip Archive
1100 DFP363608N 36 36 8 65 lbs 2D PDF | Zip Archive
1100 DFP363610N 36 36 10 70 lbs 2D PDF | Zip Archive
1100 DFP363612N 36 36 12 70 lbs 2D PDF | Zip Archive
1100 DFP363618N 36 36 18 112 lbs 2D PDF | Zip Archive
1100 DFP484812N 48 48 12 118 lbs 2D PDF | Zip Archive
No 3D model available.
