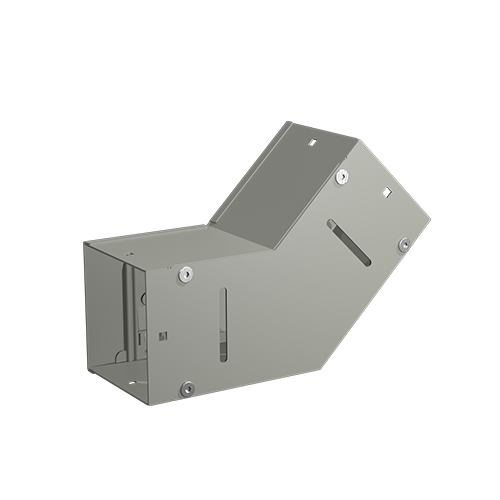

The 1150 series lay-in ducts are made of high quality code gauge stainless steel, and are designed to permit fast and easy installation of multiple wire runs. The covers are secured by quarter-turn latches. All accessories for a complete system, such as 45° and 90° elbows, offsets, T’s, and reducers, have removable covers. Joiner are linked by carriage bolts and anti-vibration nuts which can be installed using minimum tooling. All of the components are unpainted and brushed smooth #4.
UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1150 ET6045QP | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET4045QP | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 ET4645QP | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET2045QP | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 ET6090QP | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET4090QP | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 ET4690QP | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET2090QP | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 ET6045P | 6 | 6 | 6.73 | N/A | 2D PDF | 3D File |
| 1150 ET2090Q | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 ET4090Q | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 ET4690Q | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET6090Q | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET2045Q | 2 | 2 | 4.57 | N/A | 2D PDF | 3D File |
| 1150 ET4045Q | 4 | 4 | 5.96 | N/A | 2D PDF | 3D File |
| 1150 ET4645Q | 4 | 6 | 6.73 | N/A | 2D PDF | 3D File |
| 1150 ET6045Q | 6 | 6 | 6.73 | N/A | 2D PDF | 3D File |
| 1150 ET2090 | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 ET4090 | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 ET4690 | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET6090 | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET2045 | 2 | 2 | 4.57 | N/A | 2D PDF | 3D File |
| 1150 ET4045 | 4 | 4 | 5.96 | N/A | 2D PDF | 3D File |
| 1150 ET4645 | 4 | 6 | 6.73 | N/A | 2D PDF | 3D File |
| 1150 ET6045 | 6 | 6 | 6.73 | N/A | 2D PDF | 3D File |
| 1150 ET2090P | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 ET4090P | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 ET4690P | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET6090P | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 ET2045P | 2 | 2 | 4.57 | N/A | 2D PDF | 3D File |
| 1150 ET4045P | 4 | 4 | 5.96 | N/A | 2D PDF | 3D File |
| 1150 ET4645P | 4 | 6 | 6.73 | N/A | 2D PDF | 3D File |
