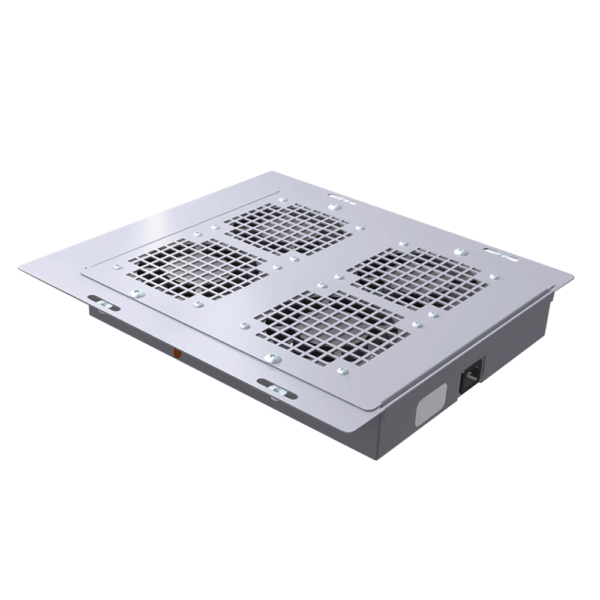

The 6500 MXFT ultra low noise top cover fan tray is installed on the top or bottom of a 600mm wide or more Mtrx cabinet. In order to install on top one must order the cable entry top cover (6500 MXTC) and replace two gland plates by the tray. For an installation on the bottom, 600mm wide cabinets only, simply remove and replace two gland plates. The tray is made of steel. Installed and serviced from the inside or outside of the enclosure. This fan tray was developed for applications where low noise and chimney active cooling is required. Fan tray kits are supplied standard with:

(i) all installation hardware;

(ii) four muffin fans and wire harness;

(iii) One IEC-320-C14 connector.

Standard finish is powder coated RAL7011 textured dark gray.
CSA / UR;
NEMA/EEMAC 1 / IP20
Note: 120V or 230V power cord not included.
