Fans & Filter Fans

19″ Fan Tray 286 – 1017 CFM

LE 019
Fan Tray
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close

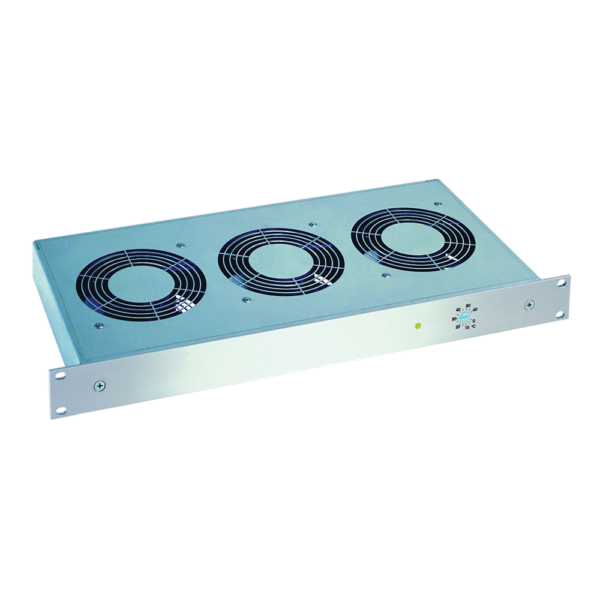

The LE 019 is a compact high performance fan tray for forced circulation of air in enclosures and for cooling of 19″ rack mount applications. Natural convection is improved and the formation of localised hot pockets is prevented. Also available with integrated thermostat.

  • Axial fans, ball bearing service life 50,000h at 25°C (65% RH) fan body aluminium, rotor plastic
  • Material front panel aluminium, bright anodised casing steel sheet, electrogalvanized
  • Optical indicator integrated in front panel
  • Connection power inlet on rear of casing, plug included (no cable)
  • Mounting position vertical airflow (air outlet up)
  • Operating / Storage temperature -10 to +60 °C / -40 to +70 °C
  • Operating / Storage temperature max. 90% RH (non-condensing)
  • Protection type / Protection class IP20 / I (grounded)
