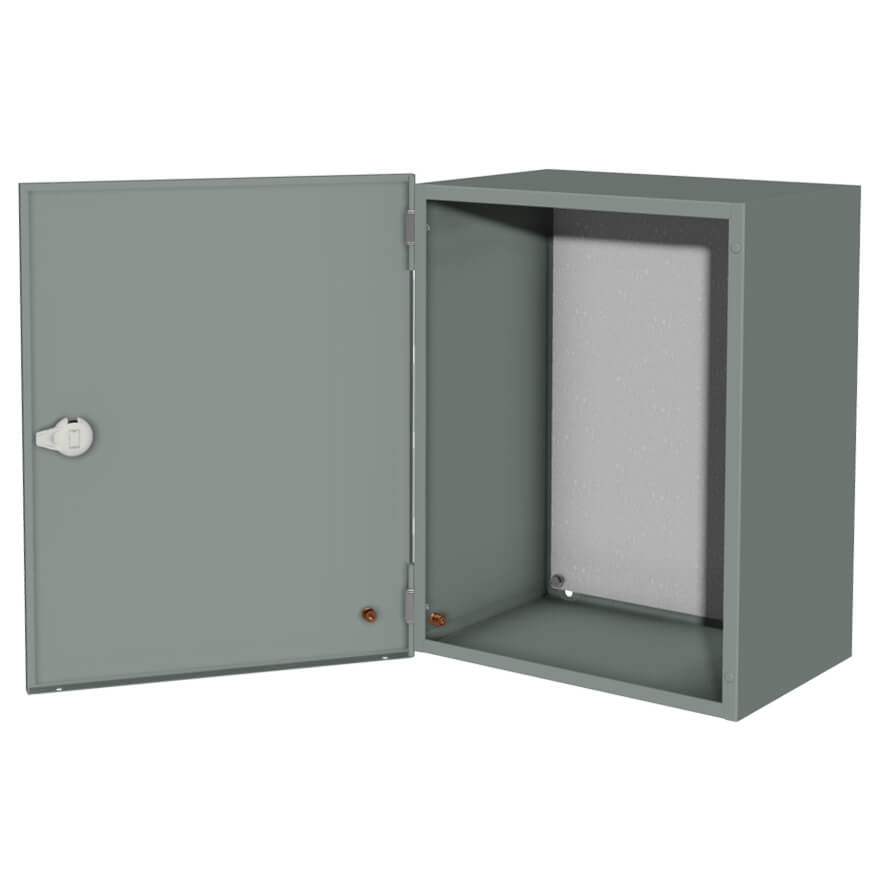

1100 & 1100 W Series
Type 1, utility enclosures now comes with quick install ¼ turn locks
The benefits:
- The slotted insert is made of durable zinc casting
- Smooth low profile locking mechanism

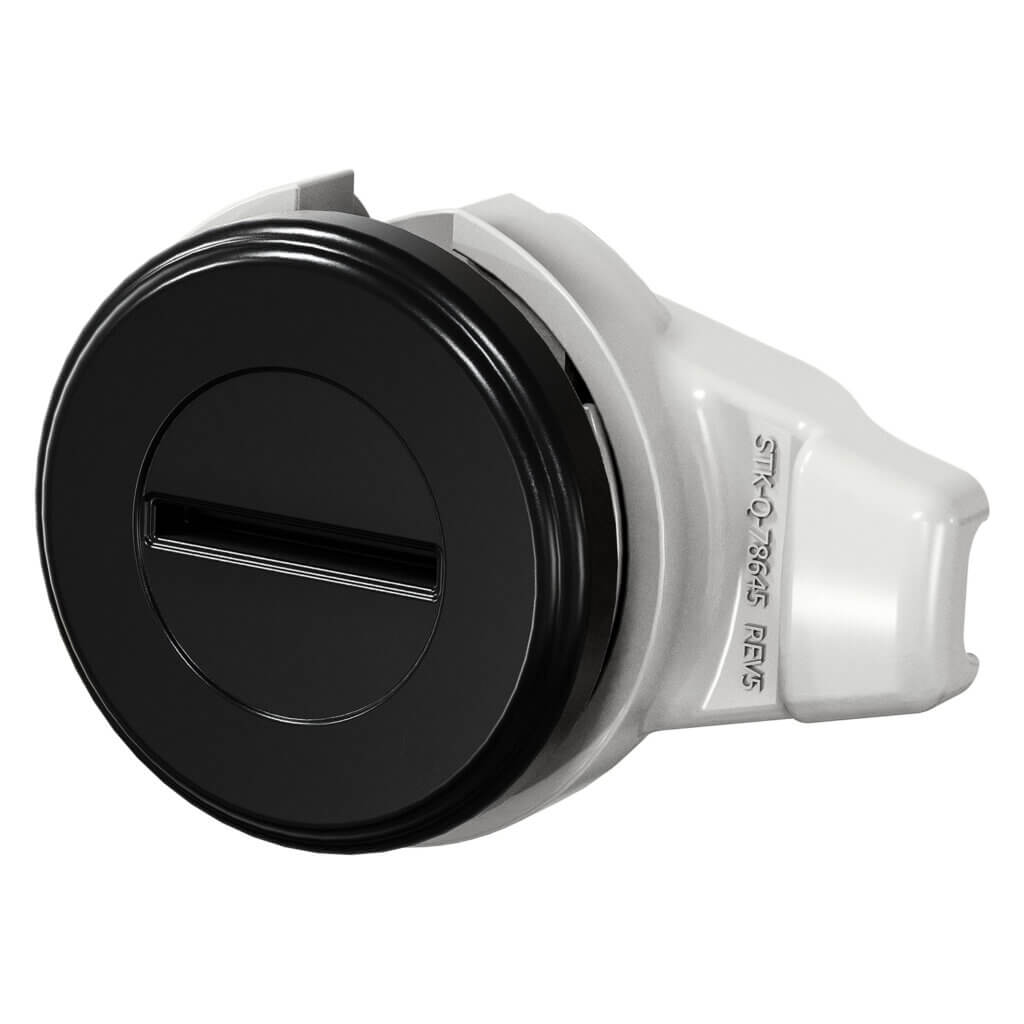

Small enclosures
have a plastic cam
(Height x Width x Depth)
6 6 4
8 6 4
8 6 6
8 8 6
8 8 4
10 8 4
10 8 6
10 10 4
10 10 6
12 10 4
12 10 6
12 12 4
12 12 6
12 12 8
14 12 4
14 12 6
14 12 8
16 12 6
16 12 8

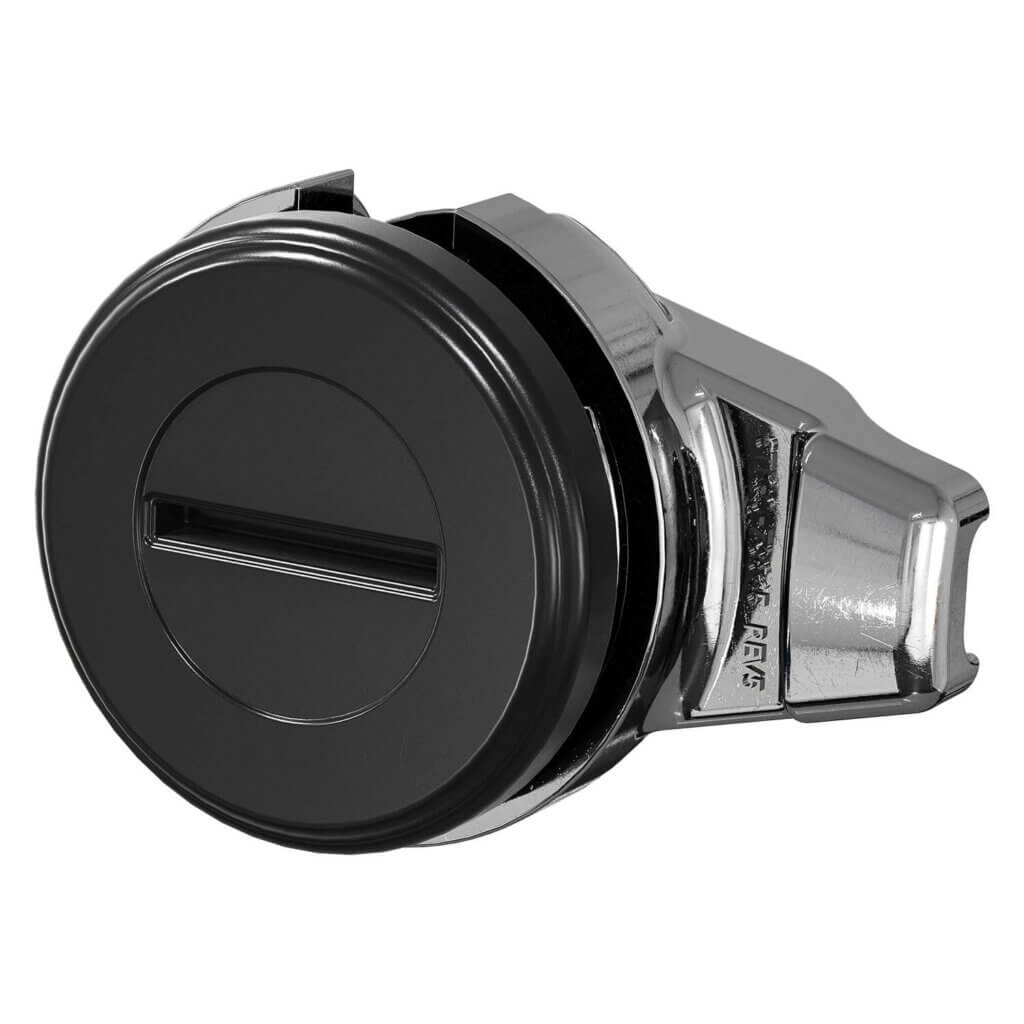

Medium enclosures
have a zinc cam
(Height x Width x Depth)
16 16 6.87
16 20 6.87
20 12 6.87
20 12 8.87
20 16 6.87
20 16 8.87
20 20 6.87
20 20 8.87
20 20 10.87
24 16 6.87
24 20 6.87
24 20 8.87
24 20 10.87
24 24 6.87
24 24 8.87
24 24 12.87
30 20 8.87
30 24 6.87
30 24 8.87
30 24 10.87
30 24 12.87
30 30 8.87
36 24 6.87
36 24 8.87
36 30 6.87
36 30 8.87
36 30 12.87

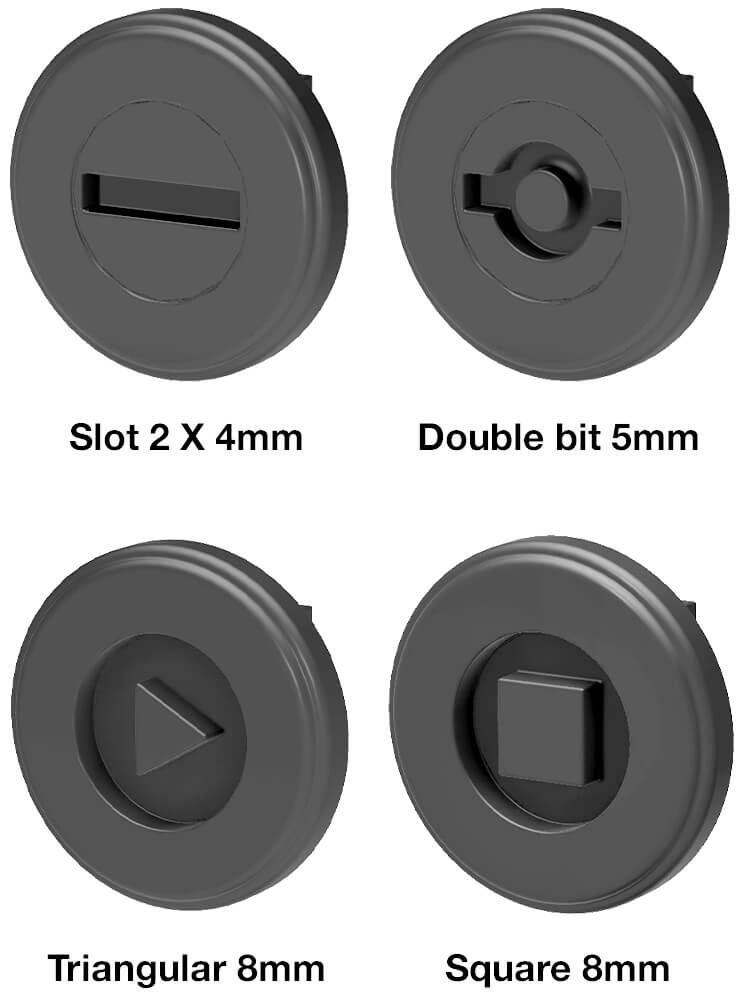

4 inserts are available for quick install ¼ turn locks
