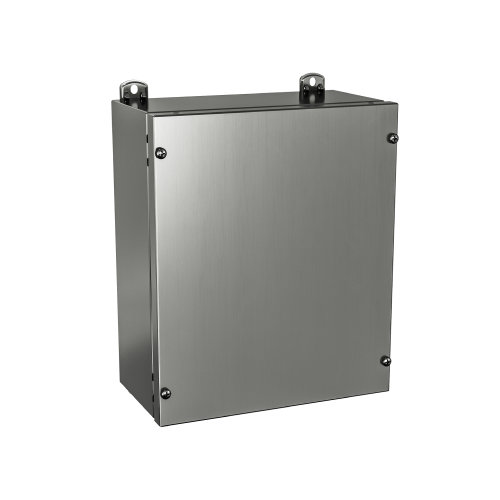

The 5412 ESSSC stainless steel screw cover enclosures are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. The box and cover are made of high quality 16 GA (Type 304) stainless steel, with all seams continuously welded. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured in place, seamless gasket ensures a complete and durable water tight seal. The enclosure can be internally or externally mounted using the included die cast wall mounting feet. These feet have oblong holes to facilitate installation. Each enclosure comes complete with a 14 GA galvanized inner panel, which mounts on welded nuts. The enclosures are unpainted and brushed smooth. Inner panel is galvanized (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 4X / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESSSC060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSSC060404 | 6 | 4 | 4 | 4 lbs | 2D PDF | 3D File |
| 5412 ESSSC060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 5412 ESSSC080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC080606 | 8 | 6 | 6 | 7 lbs | 2D PDF | 3D File |
| 5412 ESSSC080804 | 8 | 8 | 4 | 8 lbs | 2D PDF | 3D File |
| 5412 ESSSC100804 | 10 | 8 | 4 | 9 lbs | 2D PDF | 3D File |
| 5412 ESSSC100806 | 10 | 8 | 6 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSSC101004 | 10 | 10 | 4 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSSC101006 | 10 | 10 | 6 | 11 lbs | 2D PDF | 3D File |
| 5412 ESSSC120202 | 12 | 2 | 2 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSSC120404 | 12 | 4 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC120606 | 12 | 6 | 6 | 9 lbs | 2D PDF | 3D File |
| 5412 ESSSC121005 | 12 | 10 | 5 | 13 lbs | 2D PDF | 3D File |
| 5412 ESSSC121206 | 12 | 12 | 6 | 15 lbs | 2D PDF | 3D File |
| 5412 ESSSC141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESSSC141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | 3D File |
| 5412 ESSSC160404 | 16 | 4 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC160606 | 16 | 6 | 6 | 11 lbs | 2D PDF | 3D File |
| 5412 ESSSC161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | 3D File |
| 5412 ESSSC161410 | 16 | 14 | 10 | 25 lbs | 2D PDF | 3D File |
| 5412 ESSSC060403P | 6 | 4 | 3 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSSC060404P | 6 | 4 | 4 | 4 lbs | 2D PDF | 3D File |
| 5412 ESSSC060604P | 6 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 5412 ESSSC080604P | 8 | 6 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC080606P | 8 | 6 | 6 | 7 lbs | 2D PDF | 3D File |
| 5412 ESSSC080804P | 8 | 8 | 4 | 8 lbs | 2D PDF | 3D File |
| 5412 ESSSC100804P | 10 | 8 | 4 | 9 lbs | 2D PDF | 3D File |
| 5412 ESSSC100806P | 10 | 8 | 6 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSSC101004P | 10 | 10 | 4 | 10 lbs | 2D PDF | 3D File |
| 5412 ESSSC101006P | 10 | 10 | 6 | 11 lbs | 2D PDF | 3D File |
| 5412 ESSSC120202P | 12 | 2 | 2 | 3 lbs | 2D PDF | 3D File |
| 5412 ESSSC120404P | 12 | 4 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC120606P | 12 | 6 | 6 | 9 lbs | 2D PDF | 3D File |
| 5412 ESSSC121005P | 12 | 10 | 5 | 13 lbs | 2D PDF | 3D File |
| 5412 ESSSC121206P | 12 | 12 | 6 | 15 lbs | 2D PDF | 3D File |
| 5412 ESSSC141206P | 14 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESSSC141208P | 14 | 12 | 8 | 20 lbs | 2D PDF | 3D File |
| 5412 ESSSC160404P | 16 | 4 | 4 | 6 lbs | 2D PDF | 3D File |
| 5412 ESSSC160606P | 16 | 6 | 6 | 11 lbs | 2D PDF | 3D File |
| 5412 ESSSC161406P | 16 | 14 | 6 | 23 lbs | 2D PDF | 3D File |
| 5412 ESSSC161410P | 16 | 14 | 10 | 25 lbs | 2D PDF | 3D File |
