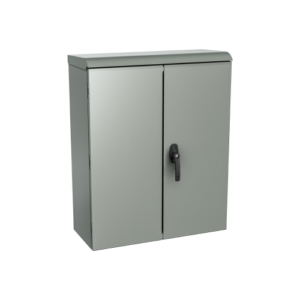

The 5412 ESSCH are used indoors or outdoors to protect the enclosed controls from dust, dirt, oil and water splashing. The 5412 ESSCH are made of high quality 16 GA (Type 304) stainless steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-inplace, seamless gasket ensures a complete and durable water tight seal. This enclosure features incorporated hinging, meaning that the hinge is a part of the box and part of the cover. This minimizes the amount of welding and allows the door to be easily removed by pulling out the full length mushroom head hinge pin. Very few JIC type enclosures offer this considerable advantage. EXM’s exclusive flange-mounted ¼ turn locking system ensures positive closing while leaving a fully workable mounting surface on the door. Each enclosure comes complete with a 14 GA galvanized inner panel, which mounts on welded nuts. The four external wall-mounting holes are oblong to facilitate installation and the mounting feet are incorporated into the body of the enclosure. The enclosures’ exterior and interior are brushed stainless steel. Inner panel is galvanized (other colors available).

CSA Certified / UL Listed NEMA/EEMAC 4X / IP66
