Type 12, 13 | Cover panel for writing desk with dual access

Consoles

6500 MWDC

IP 54NEMA 12, 13Acier Doux Peint RAL7035Double Accès

Dimension (pouces hauteur x largeur x profondeur)

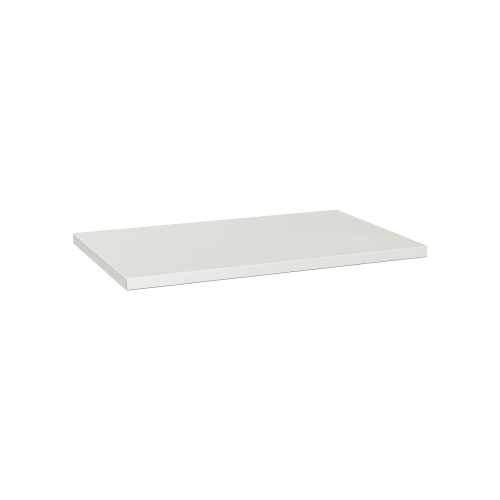

The 6500 MWDC series is used to close the top of 6500 MWD. Use in conjunction with the 6500 MCO and 6500 MWD to create a console unit.

Made of high quality steel, with continuously welded corner seams.
A robotically poured-in-place seamless gasket ensures a durable seal.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 MWDC0605		24	20	N/A	2D PDF \| 3D File
6500 MWDC0805		31	20	N/A	2D PDF \| 3D File
6500 MWDC1005		40	20	N/A	2D PDF \| 3D File
6500 MWDC1205		47	20	N/A	2D PDF \| 3D File
6500 MWDC1605		63	20	N/A	2D PDF \| 3D File

No 3D model available.
