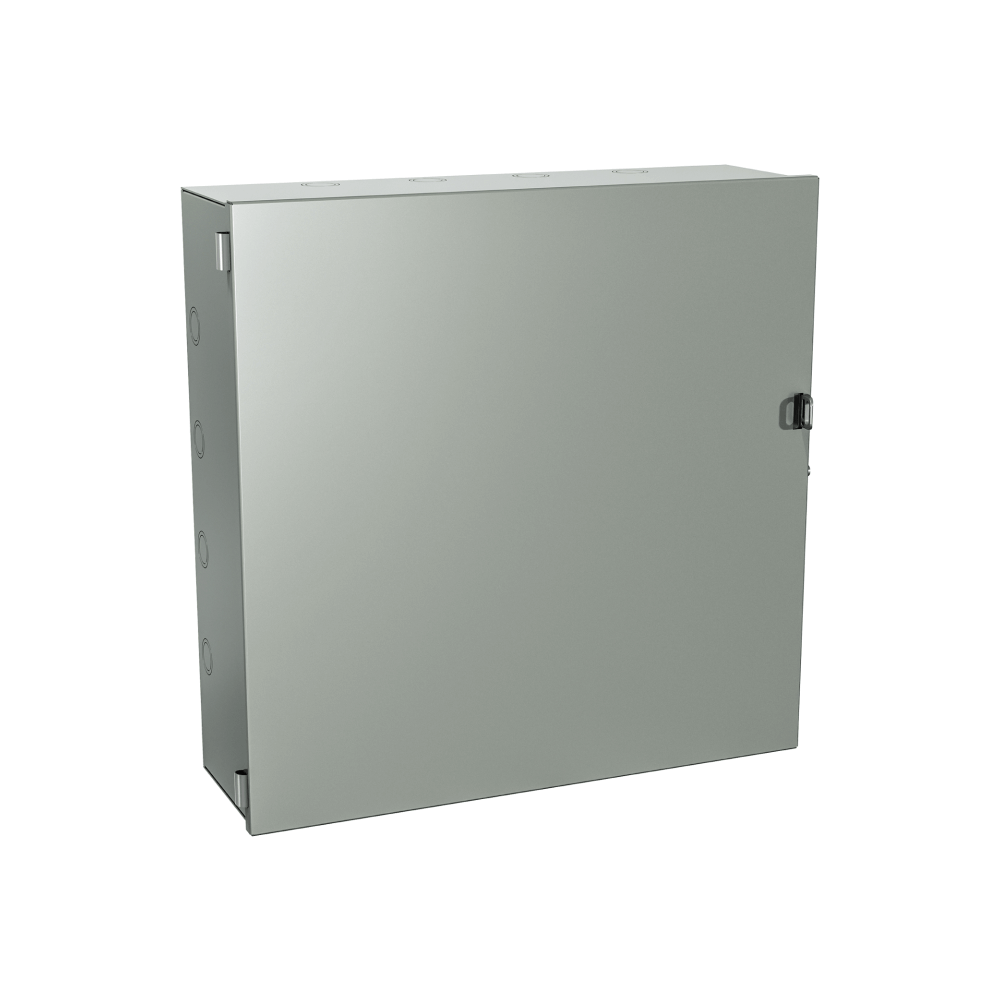

The 1100 C boxes are used as junction boxes, switch boxes, underground boxes or general service boxes. Boxes and covers are made of high quality 16 GA or 14 GA steel. Four internal mounting holes are provided, except when dimensions D and E are not specified. A bonding screw and attachments are also provided. Type C…N boxes have concentric knockouts on all four sides. Boxes smaller than dimension 303012 have a single door, which is secured with bracket hinges and a padlockable hatch. Larger boxes have double doors mounted on concealed hinges and are closed with EXM’s ¼ turn lock and a padlockable catch. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base.
CSA Certified / UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 C121206 | 12 | 12 | 6 | 22 lbs | 2D PDF | 3D File |
| 1100 C161606 | 16 | 16 | 6 | 39 lbs | 2D PDF | 3D File |
| 1100 C181206 | 18 | 12 | 6 | 26 lbs | 2D PDF | 3D File |
| 1100 C181806 | 18 | 18 | 6 | 45 lbs | 2D PDF | 3D File |
| 1100 C202006 | 20 | 20 | 6 | 48 lbs | 2D PDF | 3D File |
| 1100 C241206 | 24 | 12 | 6 | 39 lbs | 2D PDF | 3D File |
| 1100 C242406 | 24 | 24 | 6 | 65 lbs | 2D PDF | 3D File |
| 1100 C121206N | 12 | 12 | 6 | 22 lbs | 2D PDF | 3D File |
| 1100 C161606N | 16 | 16 | 6 | 39 lbs | 2D PDF | 3D File |
| 1100 C181206N | 18 | 12 | 6 | 26 lbs | 2D PDF | 3D File |
| 1100 C181806N | 18 | 18 | 6 | 45 lbs | 2D PDF | 3D File |
| 1100 C202006N | 20 | 20 | 6 | 48 lbs | 2D PDF | 3D File |
| 1100 C202010N | 20 | 20 | 10 | 70 lbs | 2D PDF | 3D File |
| 1100 C241206N | 24 | 12 | 6 | 39 lbs | 2D PDF | 3D File |
| 1100 C242406N | 24 | 24 | 6 | 65 lbs | 2D PDF | 3D File |
