PTC Heater 15 - 150W - EXM Manufacturing

Radiateurs

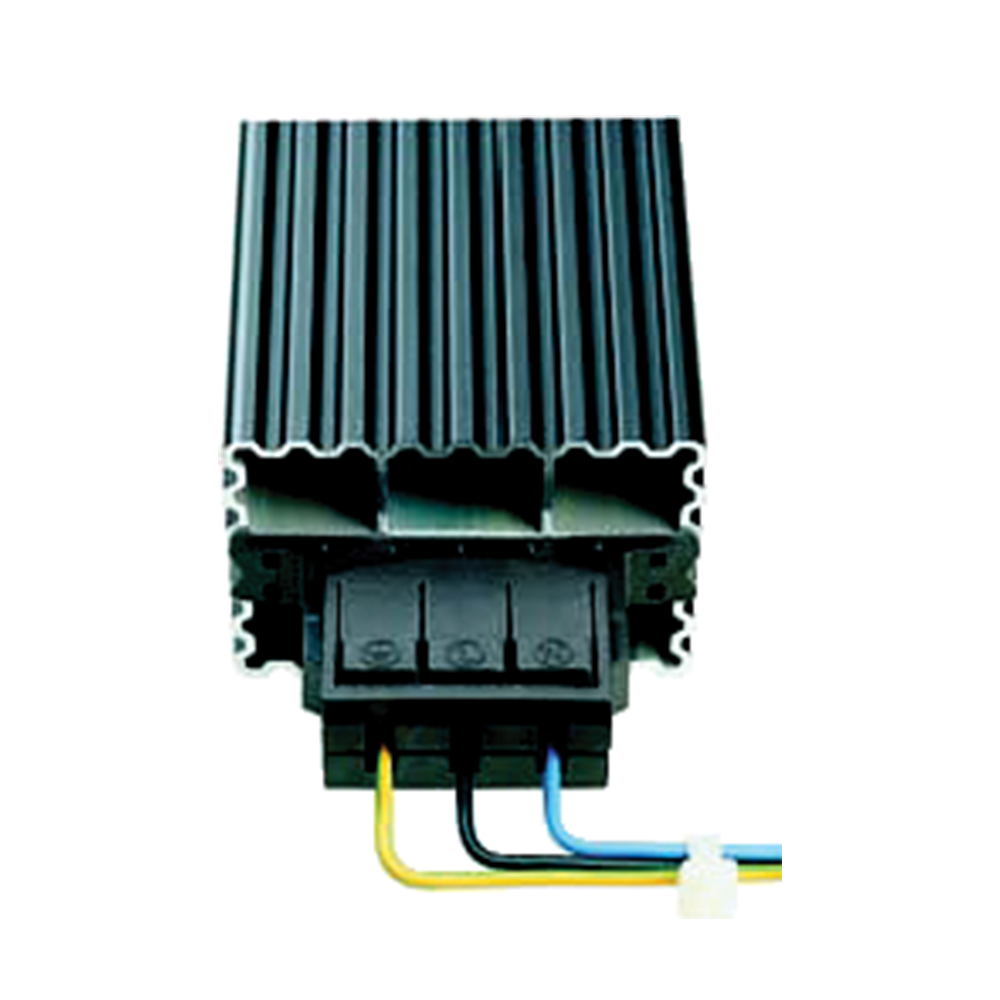

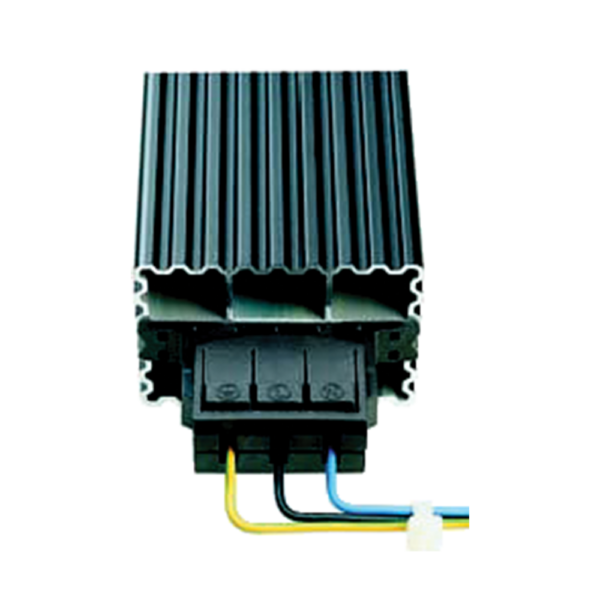

PTC Heater 15 – 150W

14000.0-

PTC Heater

Wattage

Save

Remove From Saved List

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature must be maintained above a minimum value. The aluminum profile heater body design has a chimney effect to distribute heat evenly. The cage clamp connectors save time and simplify installation.

Heating element PTC resistor – temperature limiting

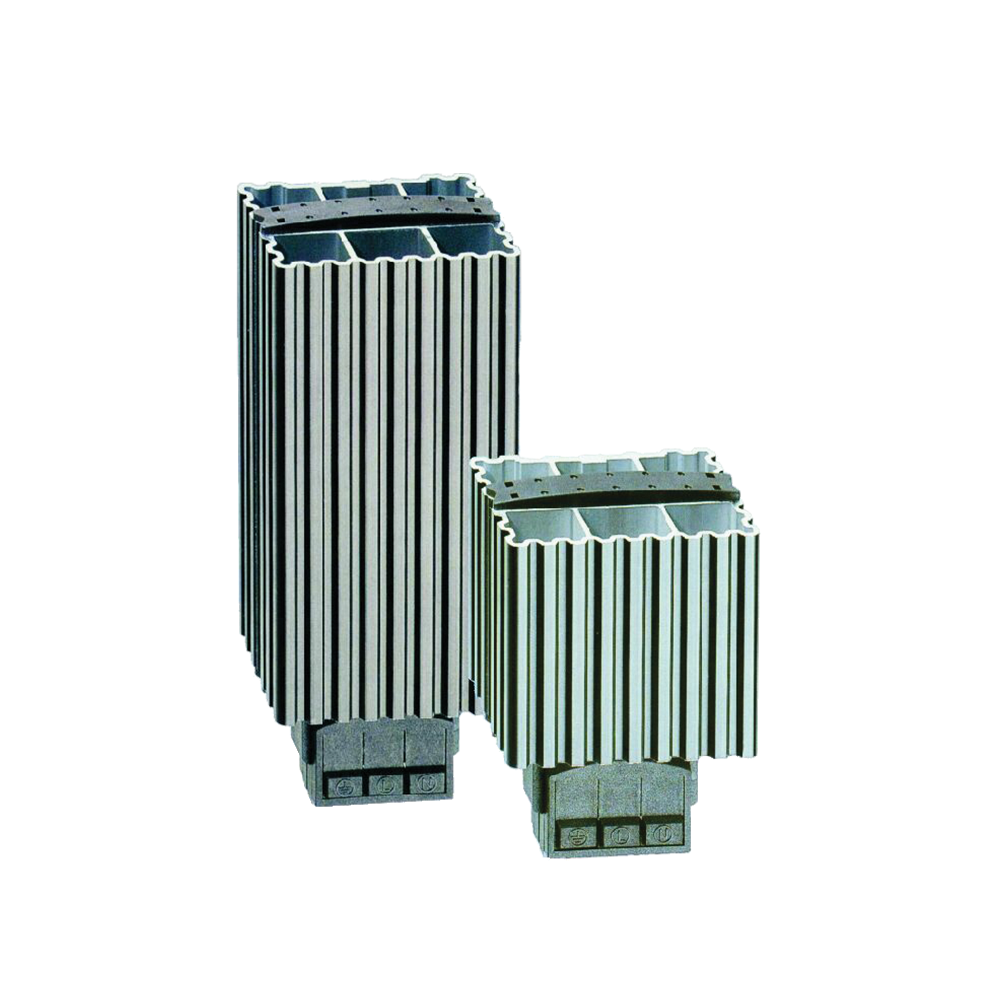

Heater body extruded aluminum profile, anodized

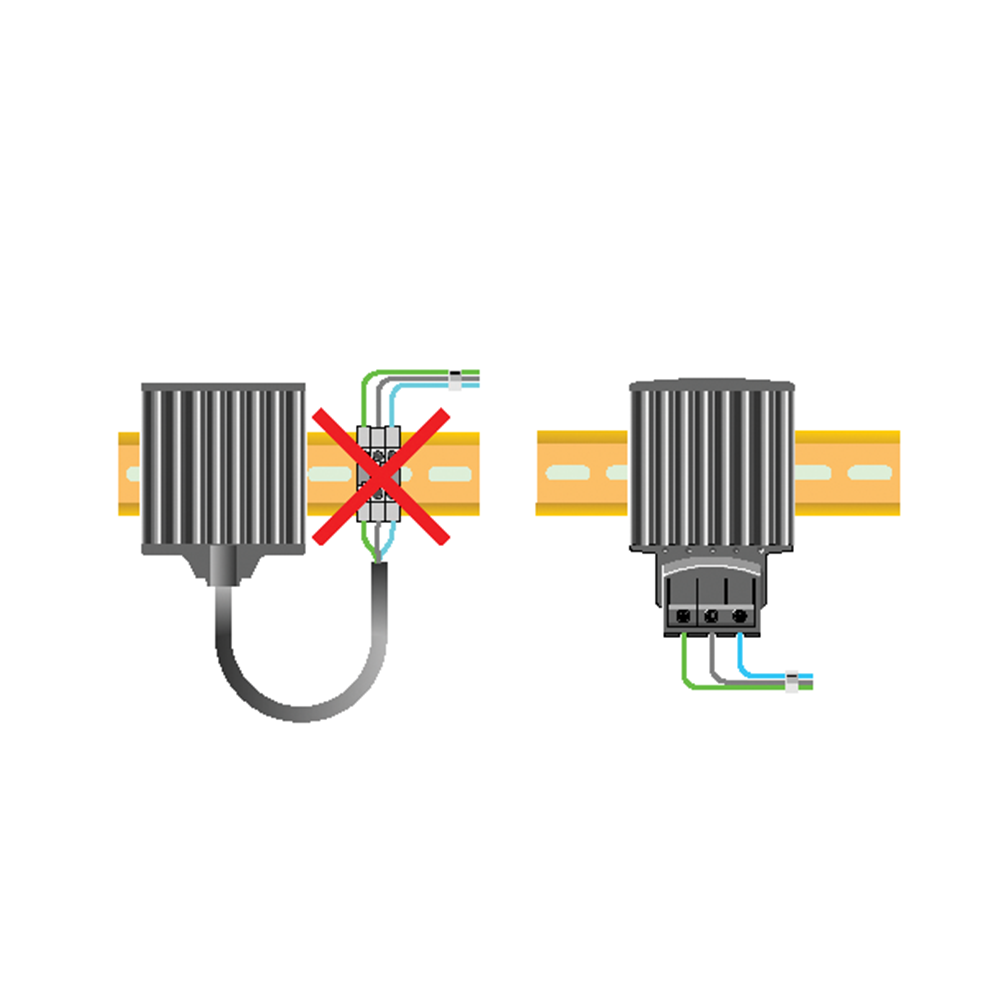

Connection 3 cage clamps for solid wire AWG 20-14 (0.5-2.5mm²), and stranded wire AWG 20-16 (0.5-1.5mm²) with wire end ferrule
Connection casing plastic, UL 94V-0, black
Mounting clip for 35mm DIN rail, EN 60715
Mounting position vertical
Operating / Storage temperature -49 to 158°F (-45 to 70°C)
Operating / Storage humidity max. 90 %RH (non-condensing)
Protection class / Protection type I (grounded) / IP20
Approvals UL File No. E150057, VDE, GOST-R

Note: other voltages available upon request
